Versa-Span™

$0.00

The Versa-Span™ Standing Seam panel: a robust, adaptable roofing solution designed to meet the rigorous demands of both homeowners and roofers. Engineered with a unique blend of steel fluted panels and a secure rib-lock design, Versa-Span™ offers exceptional strength and durability. Its concealed fasteners ensure a sleek, modern appearance while facilitating installation on low-pitched roofs. The panel's floating clip system accommodates thermal expansion and contraction across longer lengths, ensuring structural integrity in varying weather conditions.

FEATURES & BENEFITS

  • 12″, 14″, 16″ & 18″ coverage options available

  • 24 and 22 gauge Tru-Gauge™ and .032″ and .040″ Aluminum

  • Floating clip system: allows for expansion & contraction of panels in longer lengths

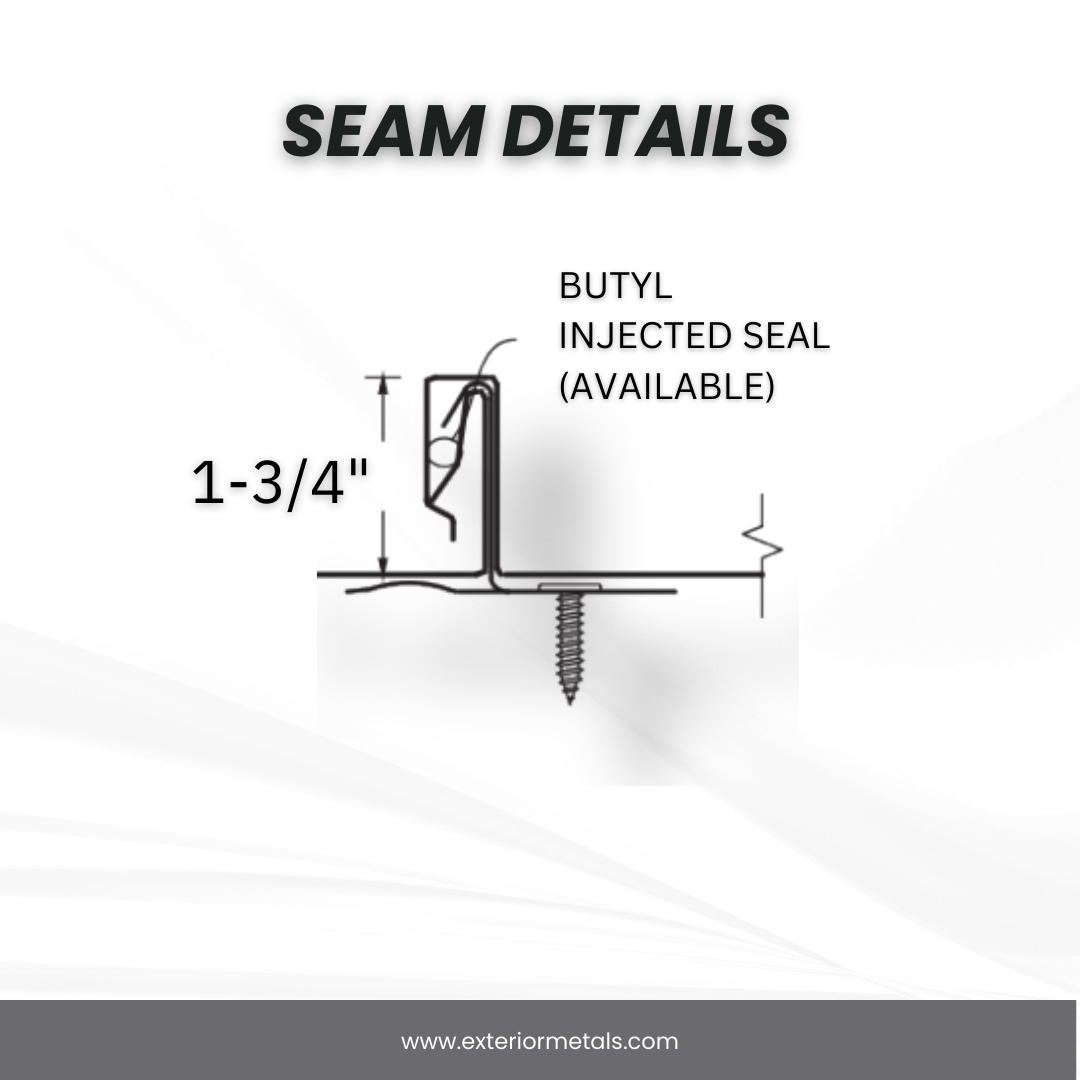

  • 1-3/4″ vertical rib, factory notching available

  • 2:12 minimum pitch recommended (for lower pitches, please inquire)

  • Standard panel lengths 5′ to 60′ – not notched
    Standard panel lengths 1′ to 60′ – notched
    (for longer length panels, please inquire)

  • Onsite roll forming available for longer panels

  • Factory injected Butyl sealant available

  • Clip Relief is not standard, available upon request

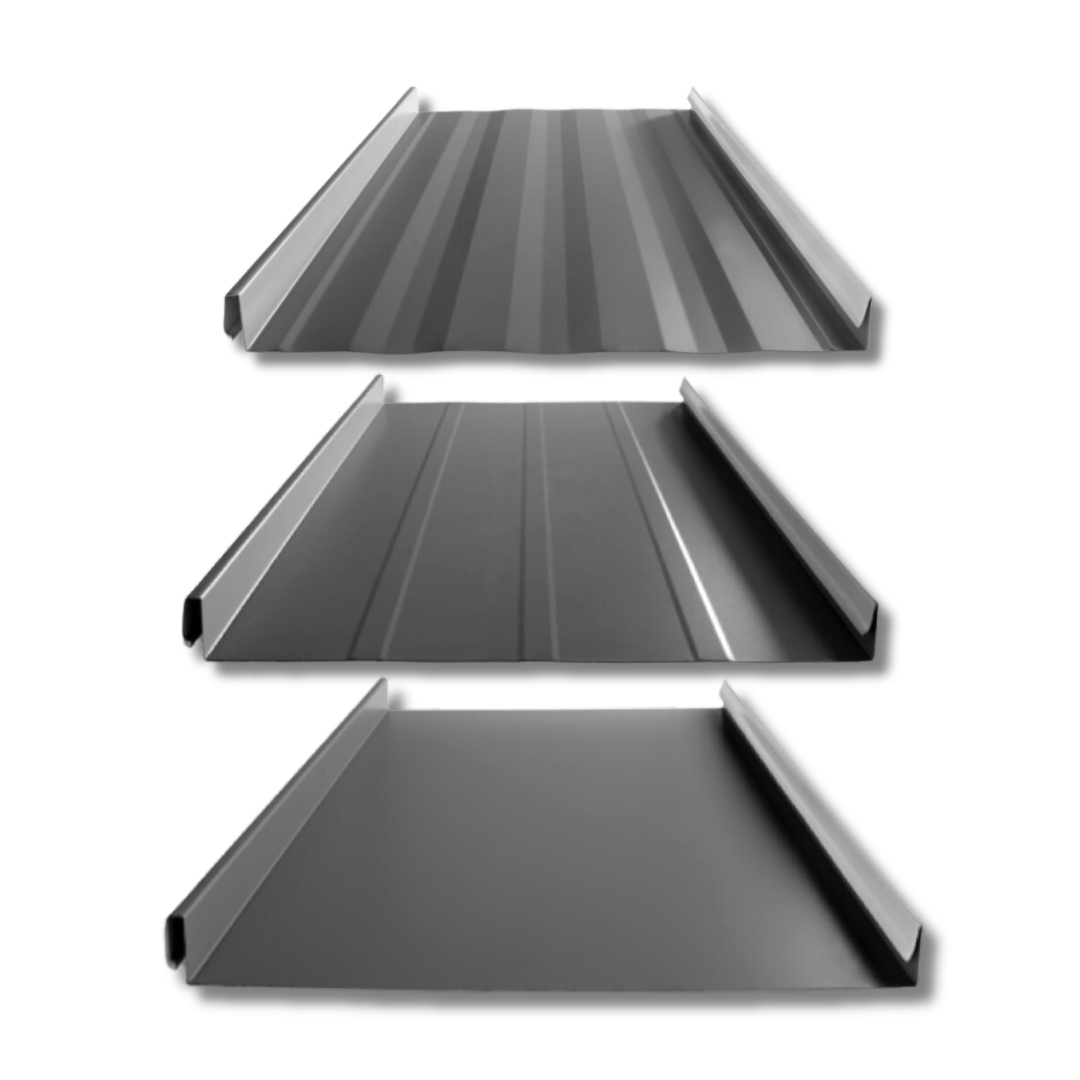

  • Pan options: Striations, Accent Ribs, Flat pan

  • Wide Batten incorporates nicely over Versa-Span™ standing seam panel (separate clip required)

Downloadable PDFs:

Versa-Span™ Installation Guide

Kynar 500 40 Year Residential Paint Warranty

The Versa-Span™ Standing Seam panel: a robust, adaptable roofing solution designed to meet the rigorous demands of both homeowners and roofers. Engineered with a unique blend of steel fluted panels and a secure rib-lock design, Versa-Span™ offers exceptional strength and durability. Its concealed fasteners ensure a sleek, modern appearance while facilitating installation on low-pitched roofs. The panel's floating clip system accommodates thermal expansion and contraction across longer lengths, ensuring structural integrity in varying weather conditions.

FEATURES & BENEFITS

  • 12″, 14″, 16″ & 18″ coverage options available

  • 24 and 22 gauge Tru-Gauge™ and .032″ and .040″ Aluminum

  • Floating clip system: allows for expansion & contraction of panels in longer lengths

  • 1-3/4″ vertical rib, factory notching available

  • 2:12 minimum pitch recommended (for lower pitches, please inquire)

  • Standard panel lengths 5′ to 60′ – not notched
    Standard panel lengths 1′ to 60′ – notched
    (for longer length panels, please inquire)

  • Onsite roll forming available for longer panels

  • Factory injected Butyl sealant available

  • Clip Relief is not standard, available upon request

  • Pan options: Striations, Accent Ribs, Flat pan

  • Wide Batten incorporates nicely over Versa-Span™ standing seam panel (separate clip required)

Downloadable PDFs:

Versa-Span™ Installation Guide

Kynar 500 40 Year Residential Paint Warranty



Installation and Aesthetics:

The Versa-Span™ panel's concealed fasteners contribute to a clean, contemporary look that enhances any structure's visual appeal. Its straightforward installation process reduces labor costs and time, offering a cost-effective solution for roofing projects. Whether replacing an existing roof or starting anew, Versa-Span™ stands out with its reliability and enduring style, providing lasting beauty and peace of mind.

FINISHES

• 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors

• Kynar 500® Paint System - the ultimate in exterior durability and color retention

• “Cool” color pigments are specially designed to reflect infra-red light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria

• Superior quality, two coat, 70% resin finish, applied at a 1 mil. thickness

• 40 year residential paint warranty

• 20 and 30 year commercial paint warranty.

• “Oil Canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection

MATERIAL SPECIFICATIONS

• 24 Tru-Gauge™ Kynar 500® Painted Steel

• 22 Tru-Gauge™ Kynar 500® Painted Steel

• .032” Kynar 500® Painted Aluminum

• 24 Tru-Gauge™ G-90 Galvanized or AZ-50

• 24 and 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 (No finish warranty – 25 yr. perforation warranty)

• G-90 Galvanized or AZ-50

• .040” Kynar 500® Painted Aluminum (please inquire)

• 24 Tru-Gauge™ Bonderized

• 22 gauge Rusteel Plus™ (A606)

• Custom 20 & 18 Tru-Gauge™ and .050” and .063” Aluminum (please inquire)

• 16 OZ & 20 OZ Real Copper

• Kynar 500® and substrate testing data available
