T-3

$0.00

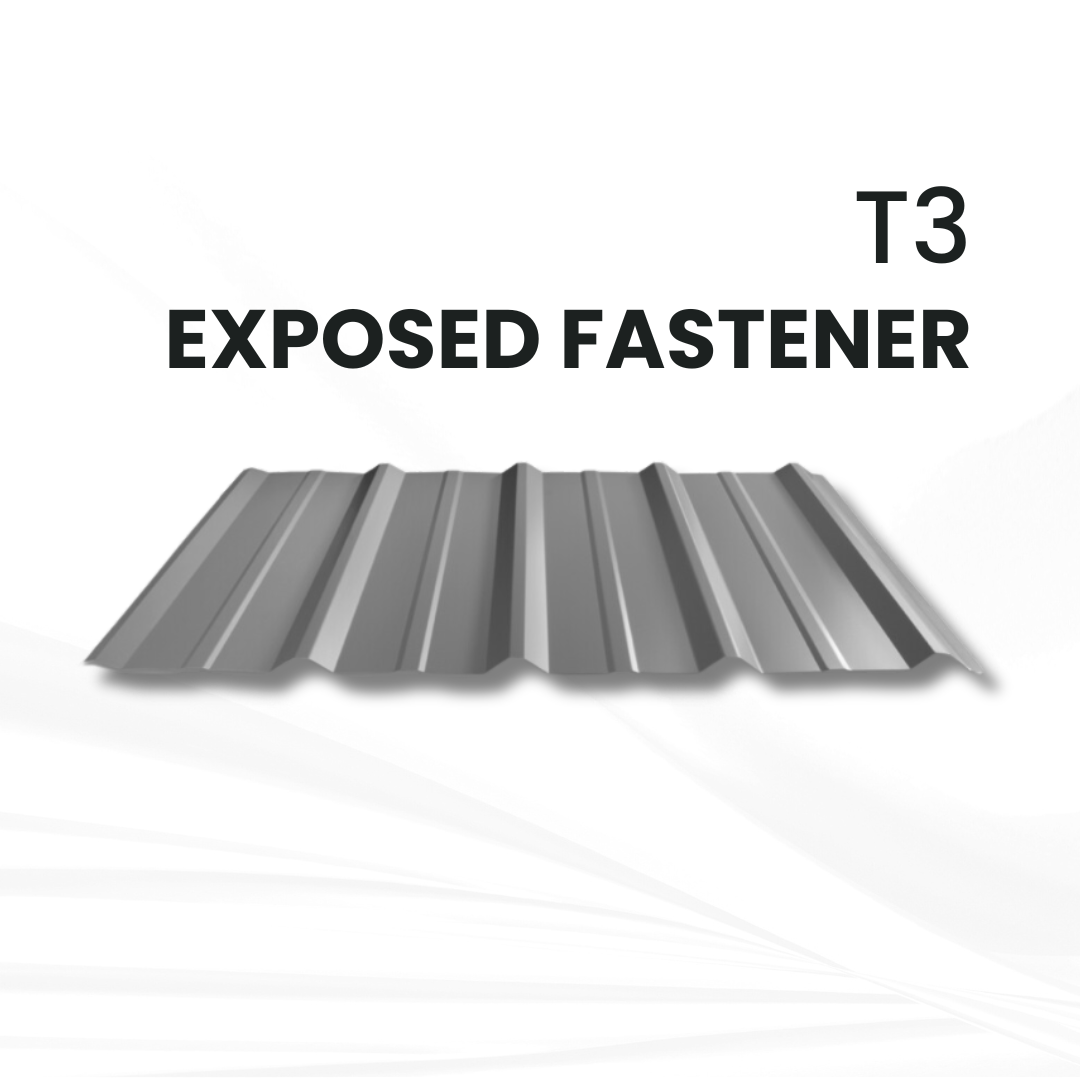

T3 Exposed Fastener systems, a robust solution renowned for its durability, cost-effectiveness, and ease of installation. These systems not only offer a rugged aesthetic but also require minimal maintenance, and ensure long-term security and visual appeal for diverse construction projects.

KEY FEATURES

• 29, 26, 24 and 22 Tru-Gauge™ and .032” Aluminum and Rusteel Plus™

• 3:12 minimum pitch recommended when installed with butyl sealant

• Custom lengths 1’ to 45’ (For longer length panels, please inquire)

• Long length flashings available up to 20’ 11” • Standard trim, custom trim and accessory packages available

• Color matched neoprene washered screws

• Roof and Vertical or Horizontal Wall application

• Fiberglass & Polycarbonate panels available to match profile

• OverEZee™ Retro-fit systems available

Downloadable PDFs:

T3 Installation Guide

ArmorTech™ 40 Year Residential Paint Warranty

Kynar 500™ 40 Year Residential Paint Warranty

T3 Exposed Fastener systems, a robust solution renowned for its durability, cost-effectiveness, and ease of installation. These systems not only offer a rugged aesthetic but also require minimal maintenance, and ensure long-term security and visual appeal for diverse construction projects.

KEY FEATURES

• 29, 26, 24 and 22 Tru-Gauge™ and .032” Aluminum and Rusteel Plus™

• 3:12 minimum pitch recommended when installed with butyl sealant

• Custom lengths 1’ to 45’ (For longer length panels, please inquire)

• Long length flashings available up to 20’ 11” • Standard trim, custom trim and accessory packages available

• Color matched neoprene washered screws

• Roof and Vertical or Horizontal Wall application

• Fiberglass & Polycarbonate panels available to match profile

• OverEZee™ Retro-fit systems available

Downloadable PDFs:

T3 Installation Guide

ArmorTech™ 40 Year Residential Paint Warranty

Kynar 500™ 40 Year Residential Paint Warranty



Installation and Warranties:

The T3 Installation Guide provides clear instructions for straightforward installation, complemented by the ArmorTech™ and Kynar 500™ 40 Year Residential Paint Warranties, ensuring longevity and performance reliability.

MATERIAL SPECIFICATIONS

• 24 Tru-Gauge™ Kynar 500® Painted Steel .0236” (Thickness prior to painting)

•22 Tru-Gauge™ Kynar 500® Painted Steel .029” (Thickness prior to painting)

• .032” Kynar 500® Painted Aluminum

• 24 Tru-Gauge™ G-90 Galvanized or AZ-50

• 24 and 22 Tru-Gauge™ bare Zincalume® Plus

AZ-55 (No finish warranty – 25 yr. perforation warranty)

• G-90 Galvanized or AZ-50 • .032" & .040” Kynar 500® Painted Aluminum

• 24 Tru-Gauge™ Bonderized • 22 gauge Rusteel Plus™ (A606) (No finish warranty – no perforation warranty)

• Kynar 500® and substrate testing data available
