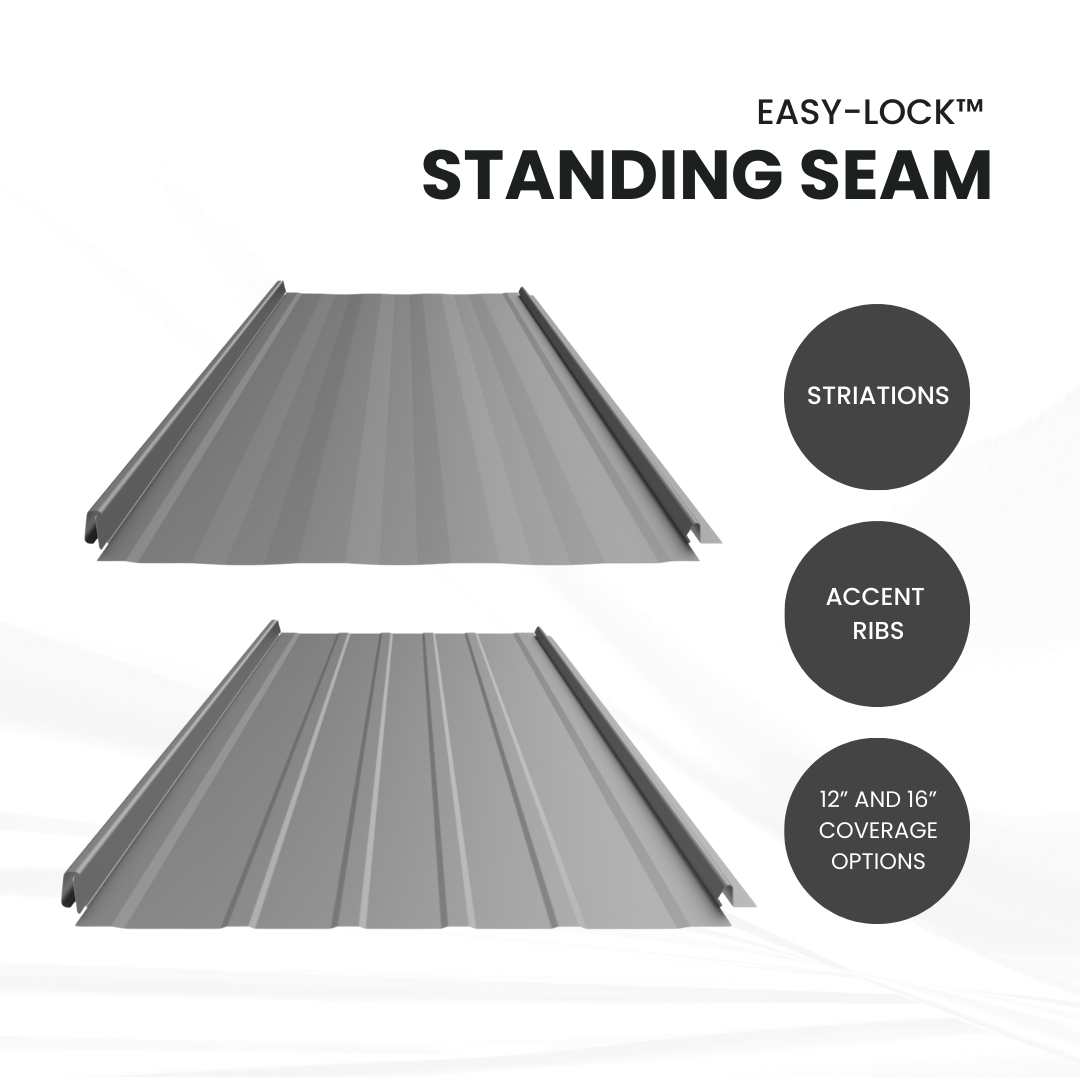

Easy-Lock™
The Easy-Lock™ Standing Seam, an innovative metal roofing panel featuring a patented no-siphon dry lock seam and a unique reversible installation feature. Designed for both aesthetic appeal and exceptional functionality, Easy-Lock™ offers ease of installation and robust durability suitable for residential and commercial applications.
FEATURES & BENEFITS
12″ and 16″ coverage options
26, 24 & 22 Tru-Gauge™ and .032 ” Aluminum
16 & 20 oz. Copper (please inquire)
Factory-notched and tabbed panels available
Vertical interlocking application: allows installation from both directions starting at any location
Patented no-siphon lock seam
1″ vertical rib with ⅜” flat top for ease of flashing attachment
Concealed fasteners: fasteners cannot leak
Pre-slotted fastener flange: allows expansion and contraction of panel (high wind clips available for panel lengths over 35′)
3:12 minimum pitch recommended (for lower pitches, please inquire)
Standard panel lengths 4′ to 35′ – not notched
Standard panel lengths 1′ to 35′ – notched
(for longer panels, please inquire)Panel options: Striations, Accent Ribs, Flat Pan
Downloadable PDFs:
Installation and Advantages:
The Easy-Lock™ system is renowned for its straightforward installation process and enhanced durability, making it an ideal choice for various architectural styles and climates. Its structural integrity, reinforced by the tabbing feature, ensures long-lasting performance and minimal maintenance.
Finishes
Kynar 500® Paint System
Offers ultimate exterior durability and color retention with "cool" pigments designed to reduce heat gain, conforming to ENERGY STAR® criteria.
Warranty
40-year residential and 20-30 year commercial paint warranties available.
Durability Enhancement

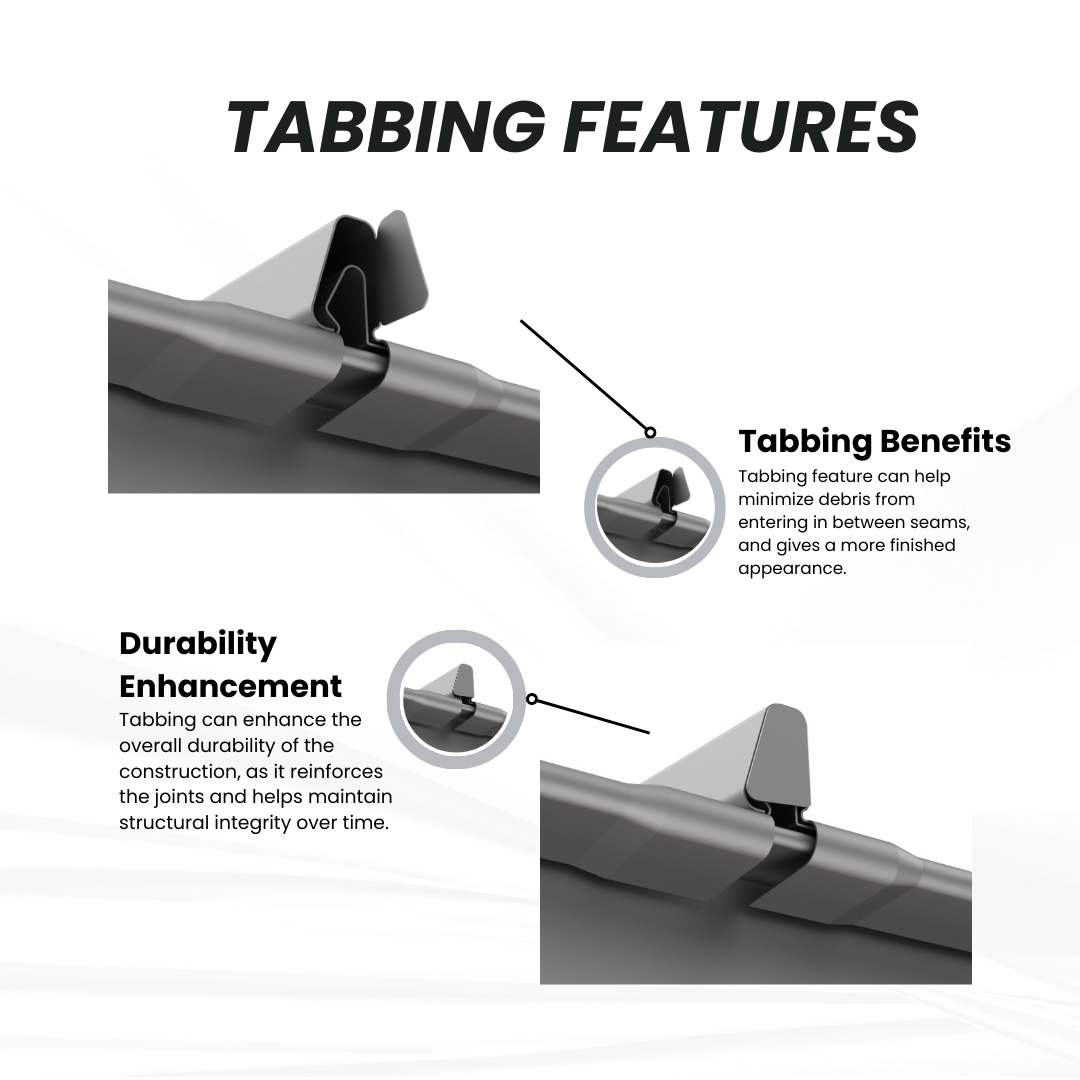

Tabbing Feature
Reinforces joints, enhancing structural integrity and minimizing debris infiltration, contributing to overall durability.

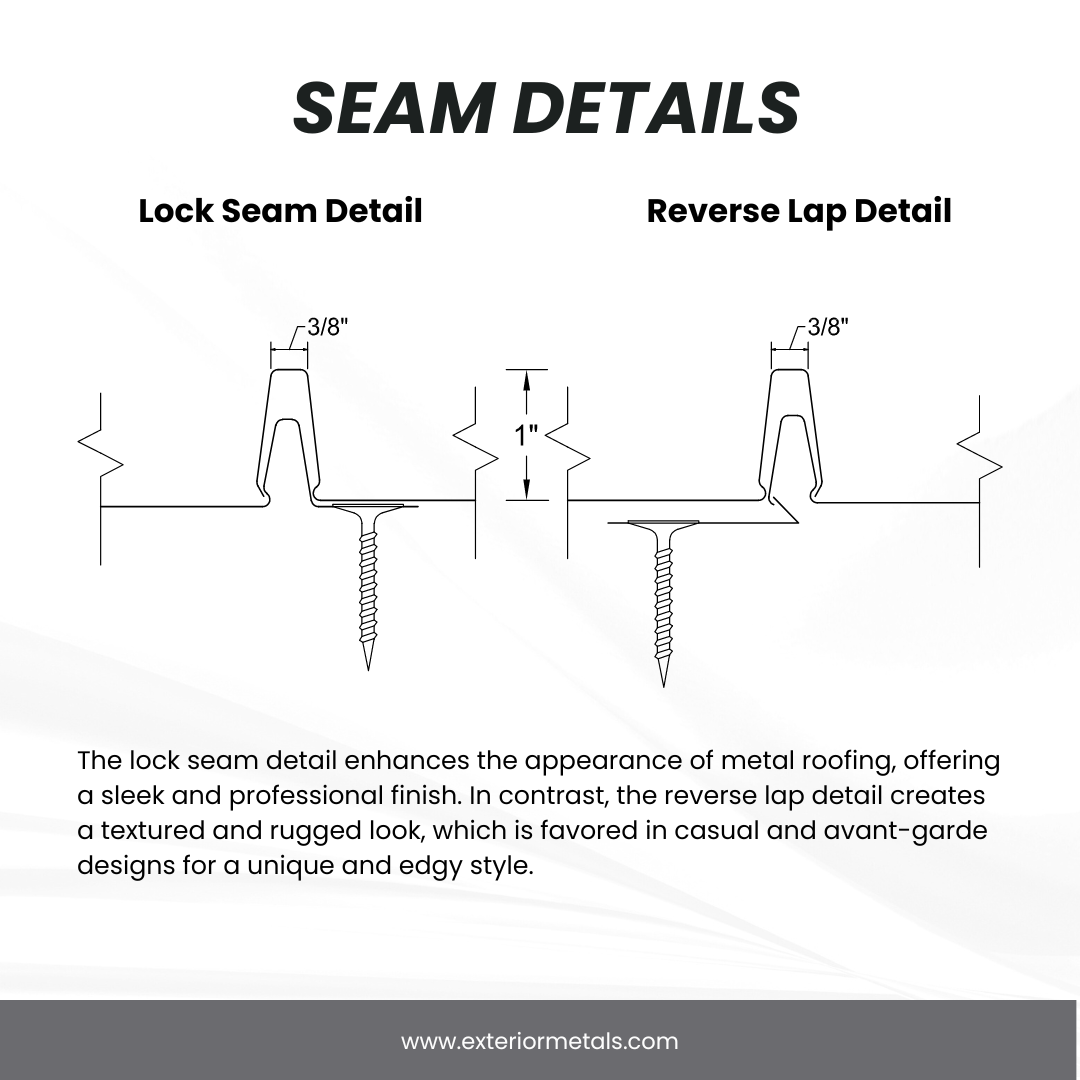

Seam Details
Patented No-Siphon Lock Seam
Prevents water infiltration, ensuring a dry and secure roofing system.
Vertical Interlocking Application
Allows installation in both directions, providing flexibility and efficiency.
