StreamLine™

$0.00

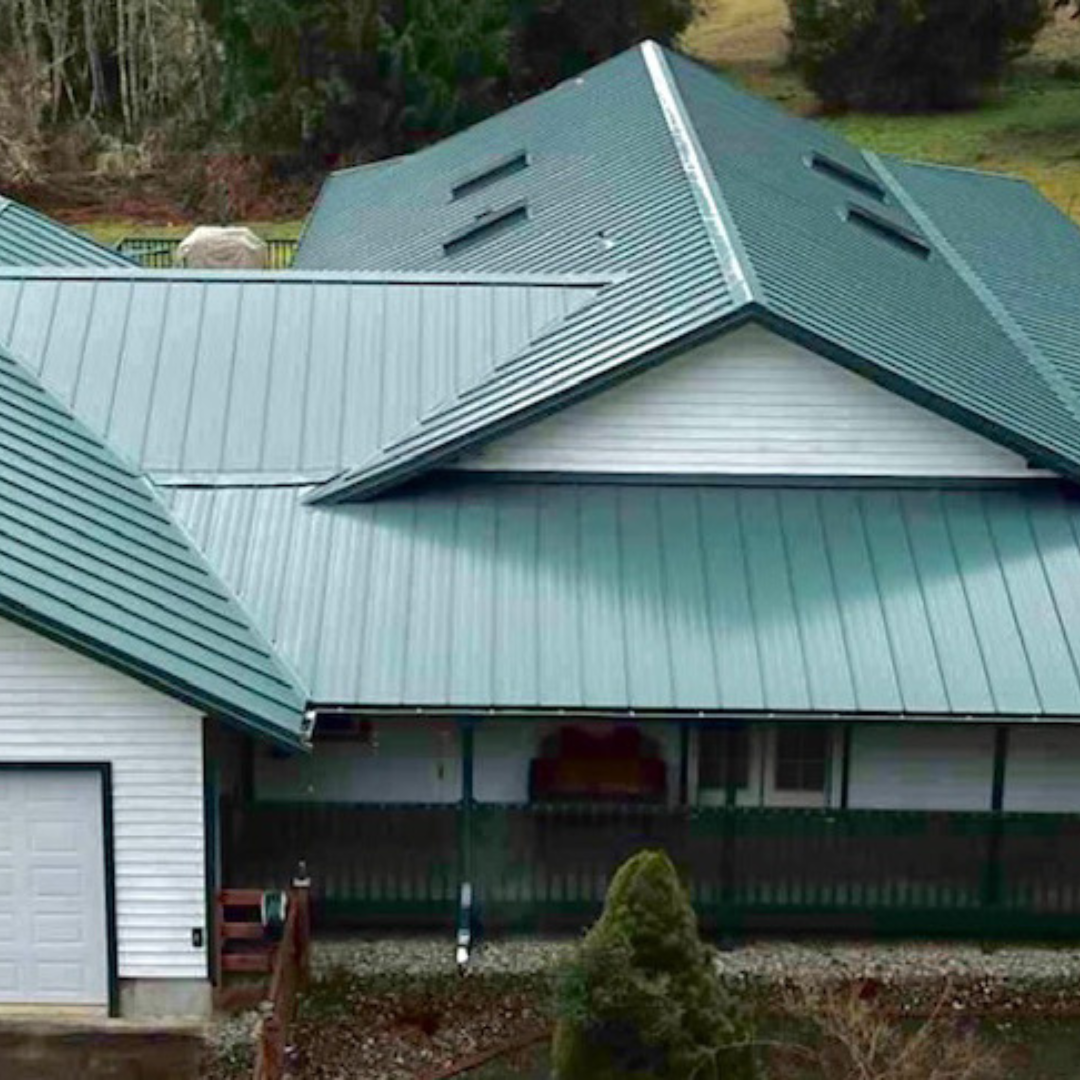

The StreamLine™ Standing Seam, a pinnacle of innovation in metal roofing panels featuring a patented no-siphon dry lock seam and a unique reversible installation capability. Designed with softer, more architecturally pleasing lines, StreamLine™ combines aesthetics with unparalleled functionality.

FEATURES & BENEFITS

  • 16″ coverage

  • 26 gauge Tru-Gauge™ ArmorTech™ Painted Steel

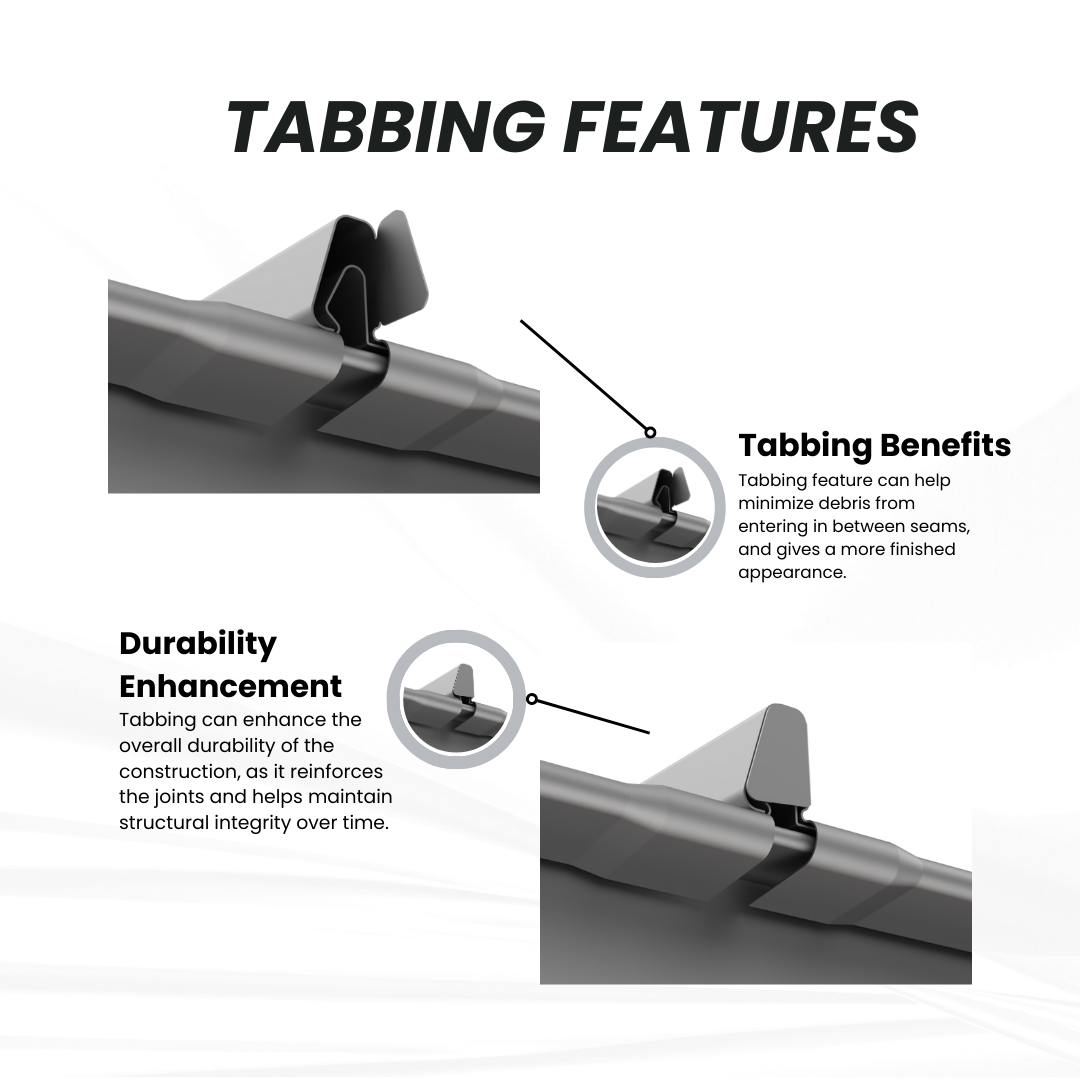

  • Factory-notched and tabbed panels available

  • Vertical interlocking application: allows installation from both directions starting at any location

  • Patented no-siphon lock seam

  • 1″ vertical rib with ⅜” flat top for ease of flashing attachment

  • Concealed fasteners: fasteners cannot leak

  • Pre-slotted fastener flange: allows expansion/contraction of panel(high wind clips available for panel length over 35′)

  • 3:12 minimum pitch recommended
    (for lower pitches please inquire)

  • Standard panel lengths 4′ to 35′ – not notched
    Standard panel lengths 1′ to 35′ – notched and tabbed
    (for longer lengths, please inquire)

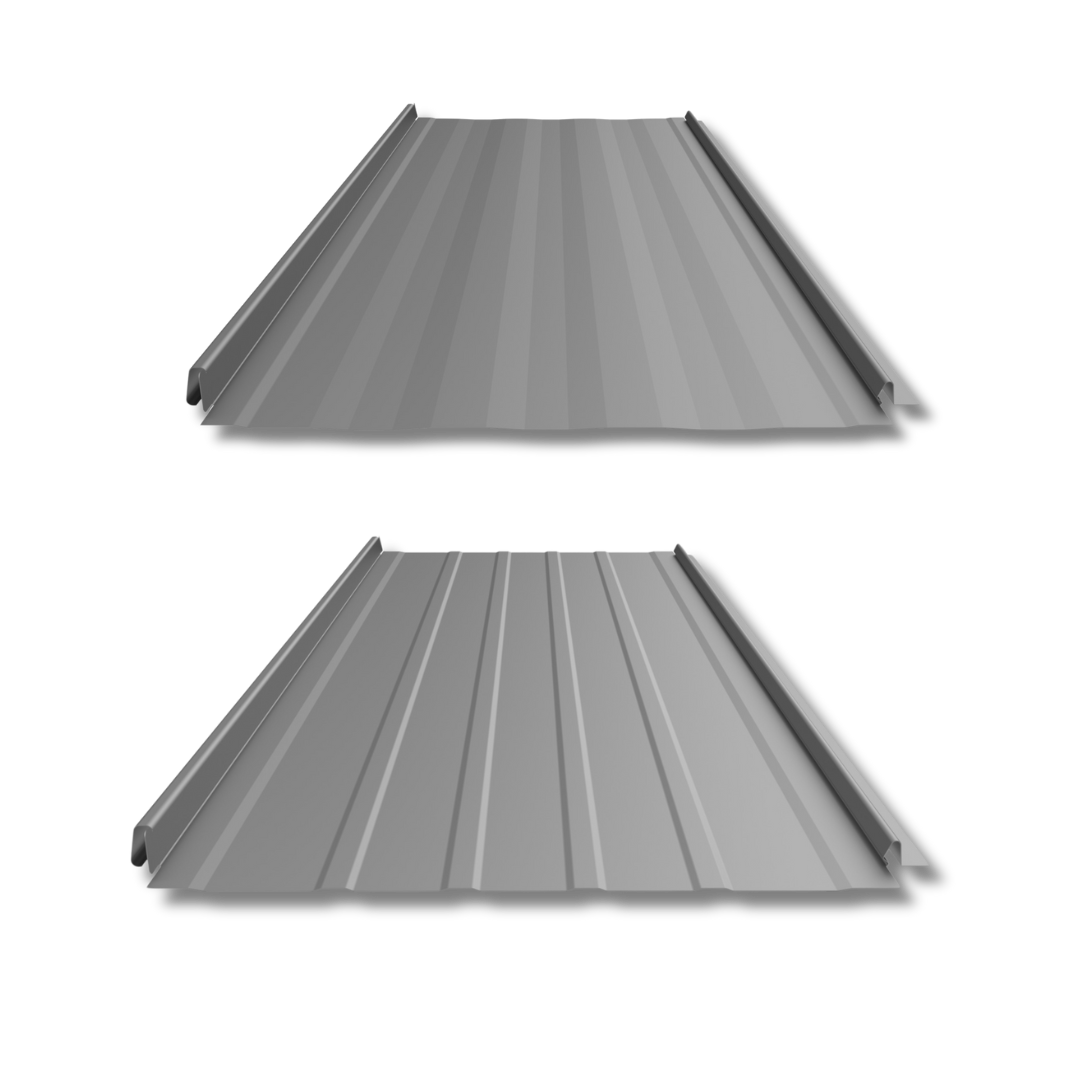

  • Panel options: Striations and Accent Ribs

Downloadable PDFs:

StreamLine™ Installation Guide

ArmorTech™ 40 Year Residential Paint Warranty

The StreamLine™ Standing Seam, a pinnacle of innovation in metal roofing panels featuring a patented no-siphon dry lock seam and a unique reversible installation capability. Designed with softer, more architecturally pleasing lines, StreamLine™ combines aesthetics with unparalleled functionality.

FEATURES & BENEFITS

  • 16″ coverage

  • 26 gauge Tru-Gauge™ ArmorTech™ Painted Steel

  • Factory-notched and tabbed panels available

  • Vertical interlocking application: allows installation from both directions starting at any location

  • Patented no-siphon lock seam

  • 1″ vertical rib with ⅜” flat top for ease of flashing attachment

  • Concealed fasteners: fasteners cannot leak

  • Pre-slotted fastener flange: allows expansion/contraction of panel(high wind clips available for panel length over 35′)

  • 3:12 minimum pitch recommended
    (for lower pitches please inquire)

  • Standard panel lengths 4′ to 35′ – not notched
    Standard panel lengths 1′ to 35′ – notched and tabbed
    (for longer lengths, please inquire)

  • Panel options: Striations and Accent Ribs

Downloadable PDFs:

StreamLine™ Installation Guide

ArmorTech™ 40 Year Residential Paint Warranty



Installation and Advantages:

StreamLine™ simplifies installation while offering flexibility for projects of varying complexity. Its robust construction and superior engineering ensure resilience against harsh weather conditions, providing long-lasting durability and reliability. The modern, sleek aesthetic enhances the visual appeal of any structure, making it ideal for residential and commercial applications. Additionally, the use of environmentally friendly materials aligns with green building practices and energy efficiency goals, reinforcing its sustainability credentials.

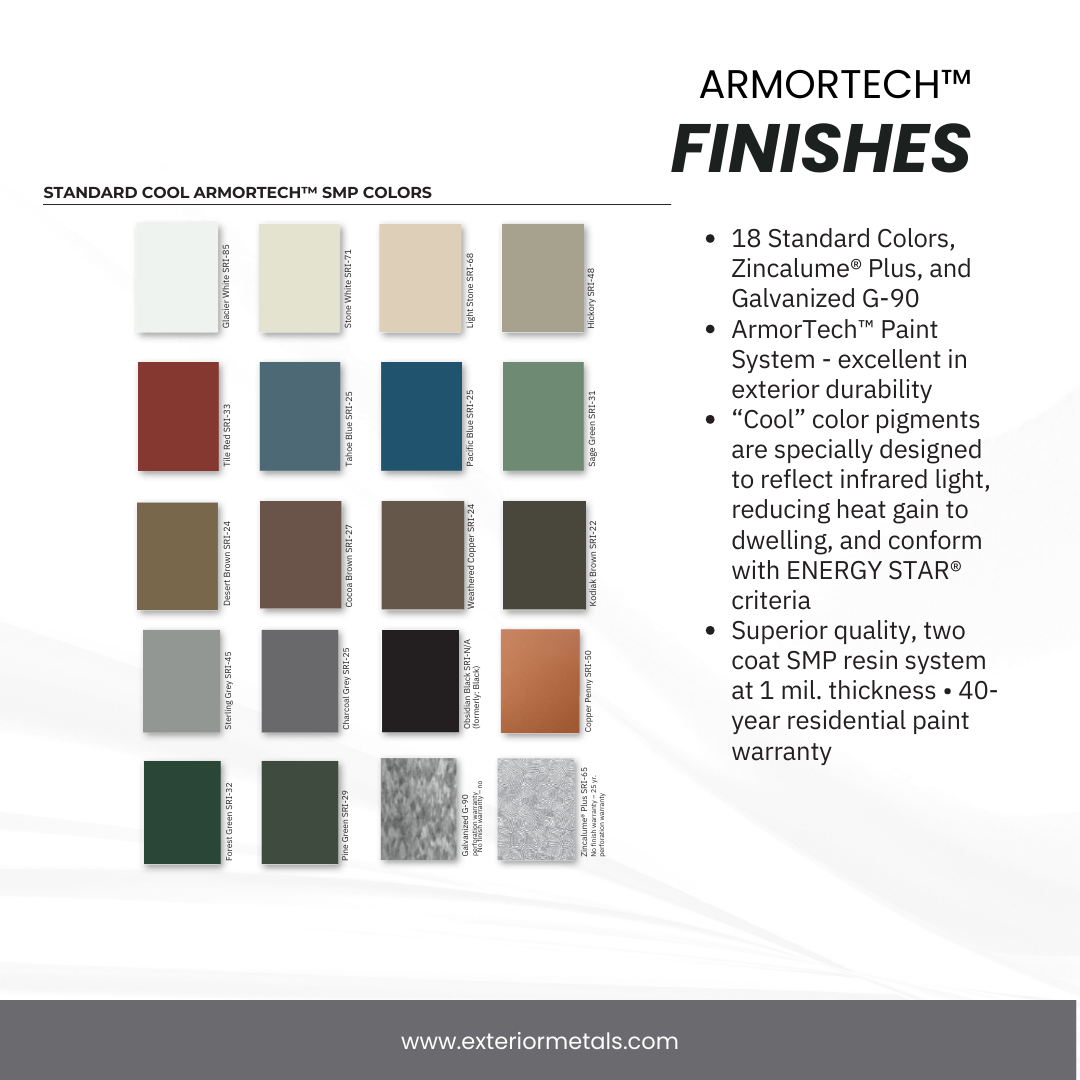

FINISHES

• 18 Standard Colors, Zincalume® Plus, and Galvanized G-90

• ArmorTech™ Paint System - excellent in exterior durability

• “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria

• Superior quality, two coat SMP resin system at 1 mil. thickness • 40-year residential paint warranty

MATERIAL SPECIFICATIONS

• 26 gauge ArmorTech™ SMP Painted Steel G-90 Galvanized or AZ-50

• 26 gauge ArmorTech™ SMP Painted Steel G-90 Galvanized or AZ-50

• 26 gauge bare G-90 Galvanized (No finish warranty – no perforation warranty)
