SmoothWall™

$0.00

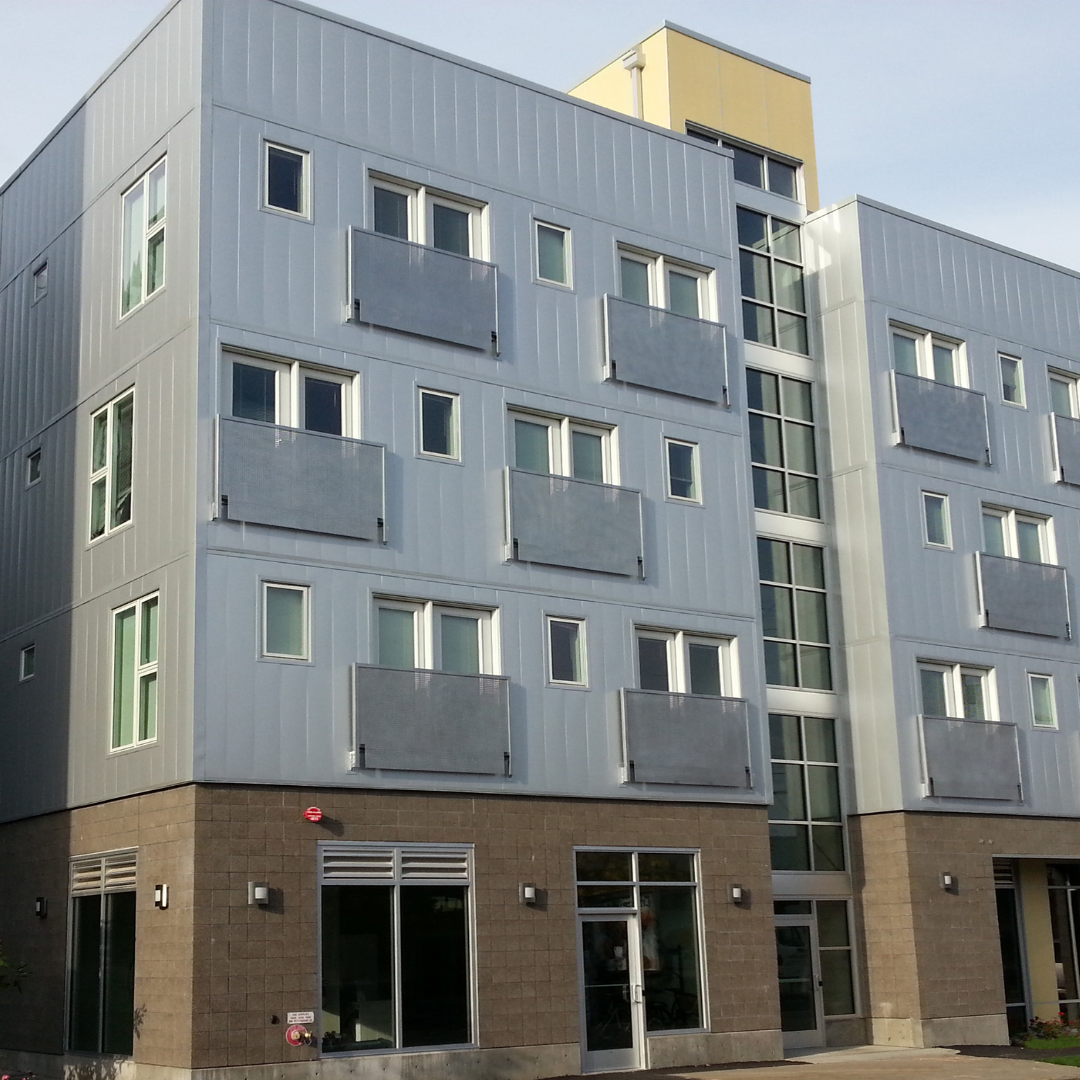

SmoothWall™ will give your commercial or residential projects a clean monolithic appearance. These panels are a perfect fit to be used on walls, soffits and fascia. With the different panel styles available, your designs will come alive.

KEY FEATURES

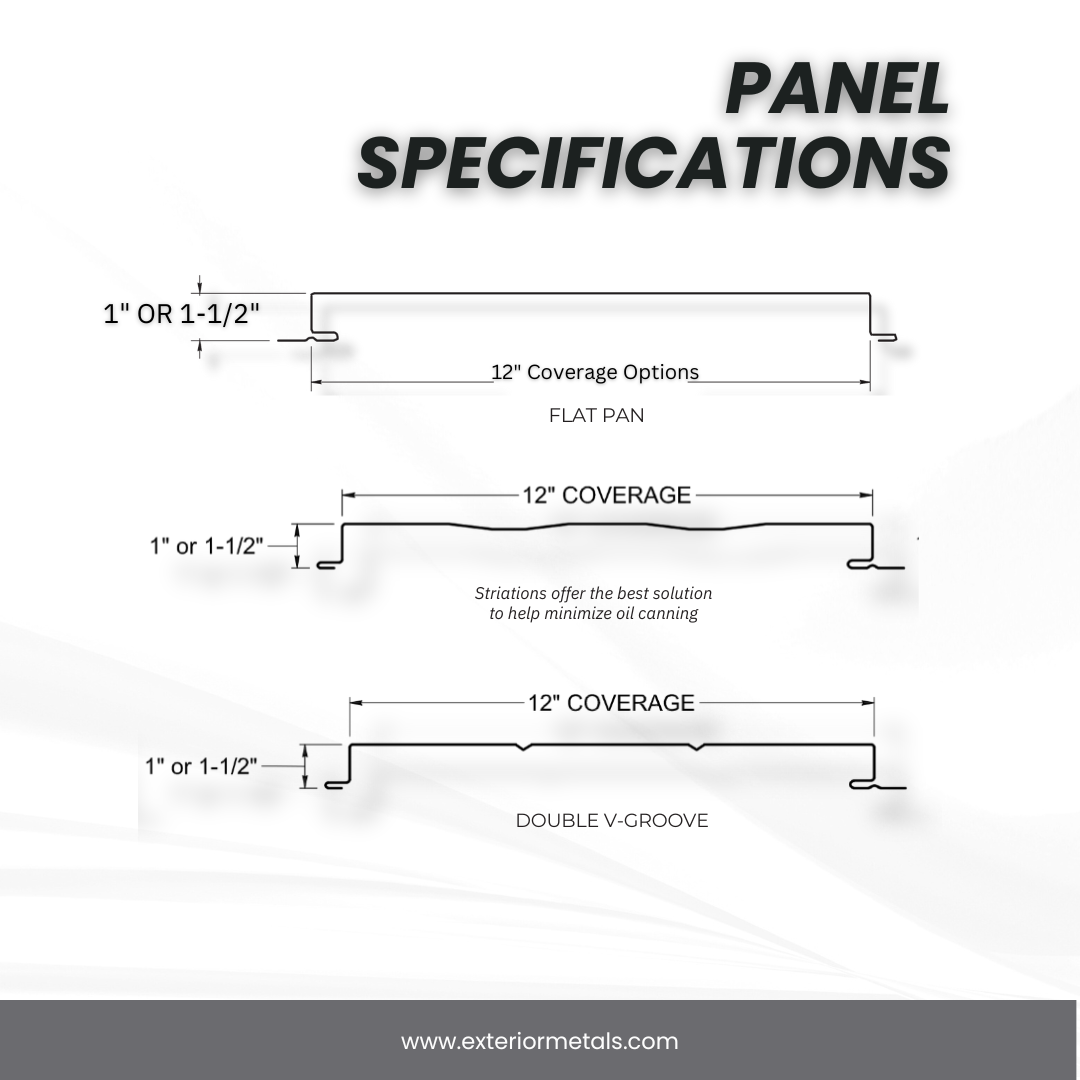

• 12" coverage

• 24 & 22 gauge Tru-gauge™

• .032 & .040 Aluminum

• 20 and 18 gauge, .050 and .063 Aluminum available (Please inquire)

• Custom Lengths 3' to 35' (Inquire for longer or shorter lengths)

• 2' Shortcut capability (Fee applicable)

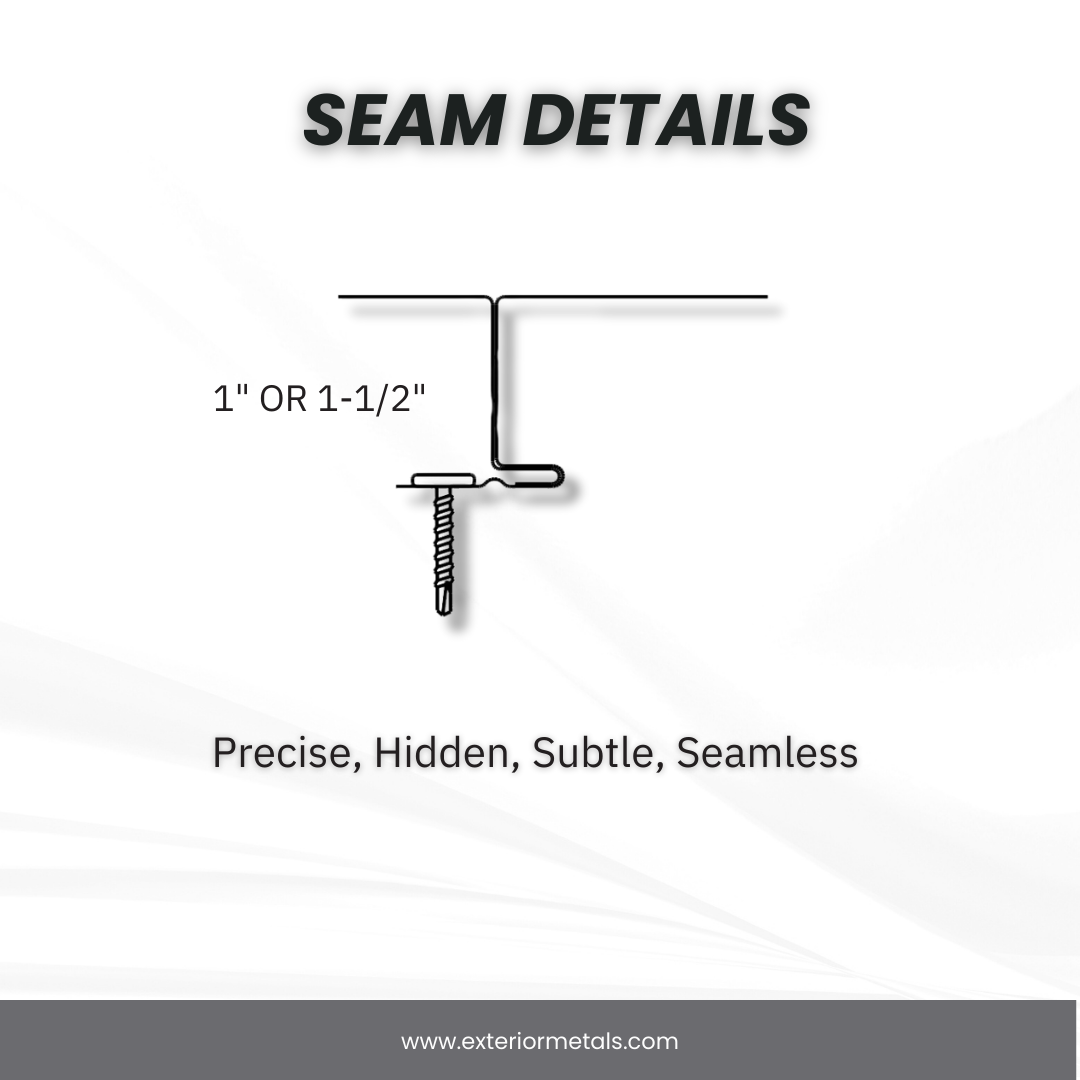

• Concealed Fasteners: fasteners cannot leak

• Versatile in wall and soffit applications

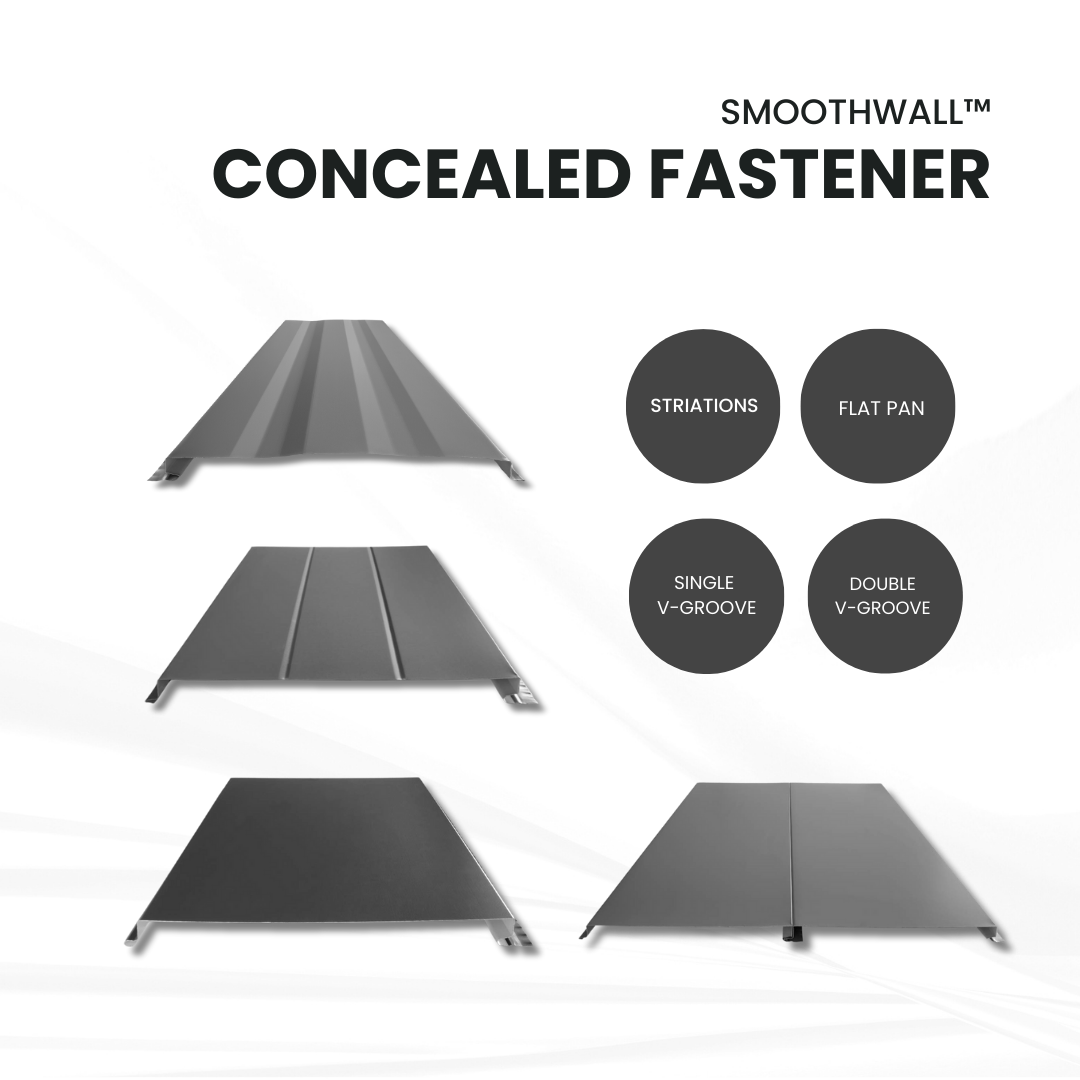

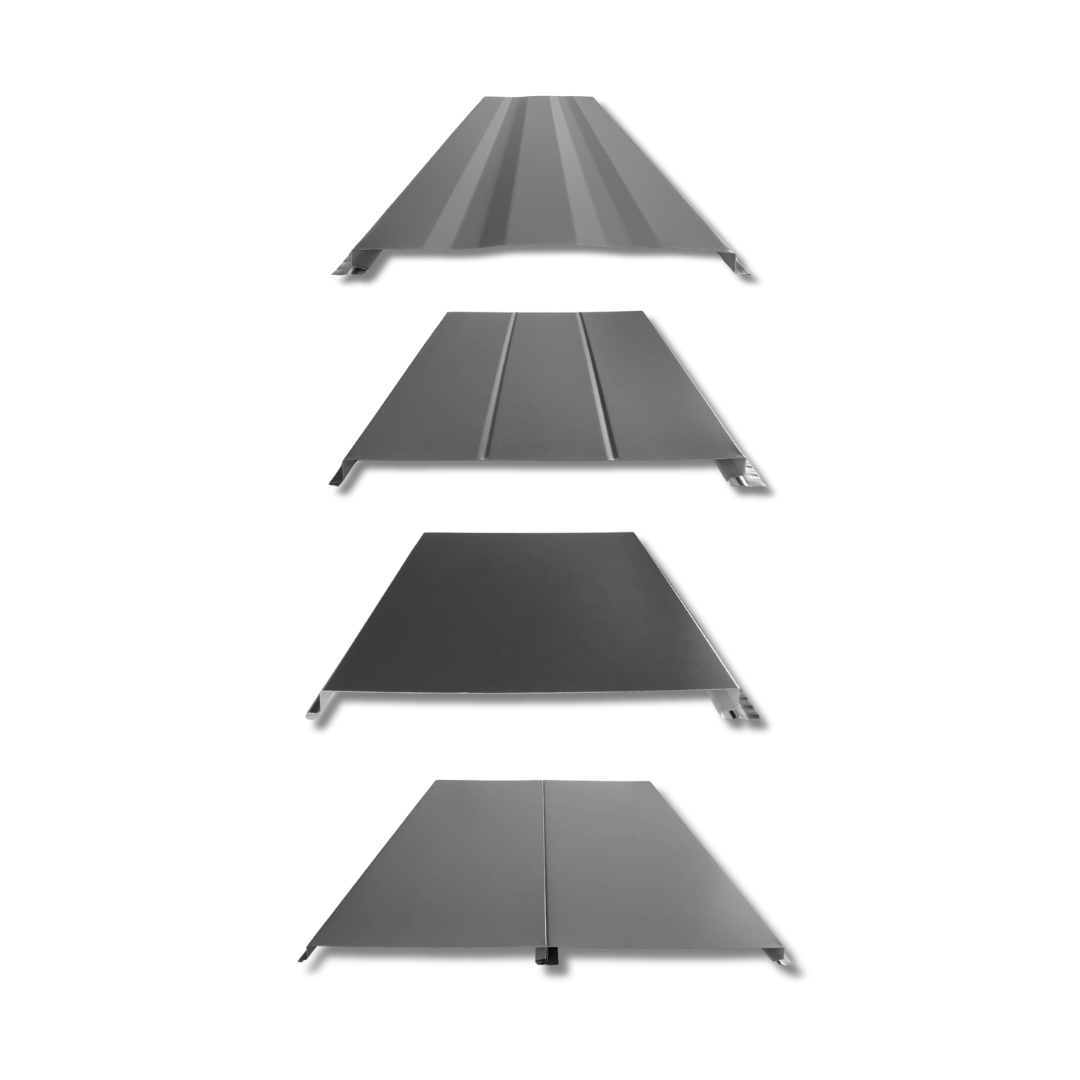

• Panel options: Striations, Single V-Groove, Double V-Groove, and Flat Pan (only available in 24 & 22 gauge, and .032 & .040 Aluminum)

• “Oil canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection

Downloadable PDFs:

SmoothWall™ Installation Guide

Kynar 500 - 40 Year Residential Paint Warranty

SmoothWall™ will give your commercial or residential projects a clean monolithic appearance. These panels are a perfect fit to be used on walls, soffits and fascia. With the different panel styles available, your designs will come alive.

KEY FEATURES

• 12" coverage

• 24 & 22 gauge Tru-gauge™

• .032 & .040 Aluminum

• 20 and 18 gauge, .050 and .063 Aluminum available (Please inquire)

• Custom Lengths 3' to 35' (Inquire for longer or shorter lengths)

• 2' Shortcut capability (Fee applicable)

• Concealed Fasteners: fasteners cannot leak

• Versatile in wall and soffit applications

• Panel options: Striations, Single V-Groove, Double V-Groove, and Flat Pan (only available in 24 & 22 gauge, and .032 & .040 Aluminum)

• “Oil canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection

Downloadable PDFs:

SmoothWall™ Installation Guide

Kynar 500 - 40 Year Residential Paint Warranty



Whether you're renovating an old space or building from scratch, Smoothwall provides a versatile solution that meets contemporary aesthetic standards. Moreover, it can be paired with various paint colors and finishes to create a customized look that complements any decor style. For those looking to add a touch of sophistication to their interiors, Smoothwall not only elevates the overall ambiance but also adds value to the property. With its ability to create clean, unbroken surfaces, this technique ensures that your walls will remain timeless and stylish for years to come.

MATERIAL SPECIFICATIONS

• 24 Tru-Gauge™ Kynar 500® Painted Steel

•22 Tru-Gauge™ Kynar 500® Painted Steel

• 24 Tru-Gauge™ G-90 Galvanized or AZ-50

• 24 and 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 (No finish warranty – 25 yr. perforation warranty)

• G-90 Galvanized or AZ-50

• 24 Tru-Gauge™ Bonderized

• 22 gauge Rusteel Plus™ (A606)

• 16 OZ & 20 OZ Real Copper

• Kynar 500® and substrate testing data available
