Slim-Lock™

$0.00

The Slim-Lock™ Standing Seam, a testament to strength, elegance, and enduring quality in roofing solutions. Crafted with meticulous attention to detail, Slim-Lock™ ensures a seamless, weathertight roof that stands the test of time. Its innovative clip system allows for the installation of exceptionally long panels without compromising structural integrity.

KEY FEATURES

• Standard coverages: 15-5/8" & 19-5/8" (24ga. only) (For other widths, please inquire)

• Non Standard coverages/requires slitting: 12” & 16”

• 24 & 22 Tru-Gauge™ and .032" Aluminum

• 16 & 20 oz. Copper (Please inquire)

• Floating clip system: allows for expansion & contraction of panels in longer lengths

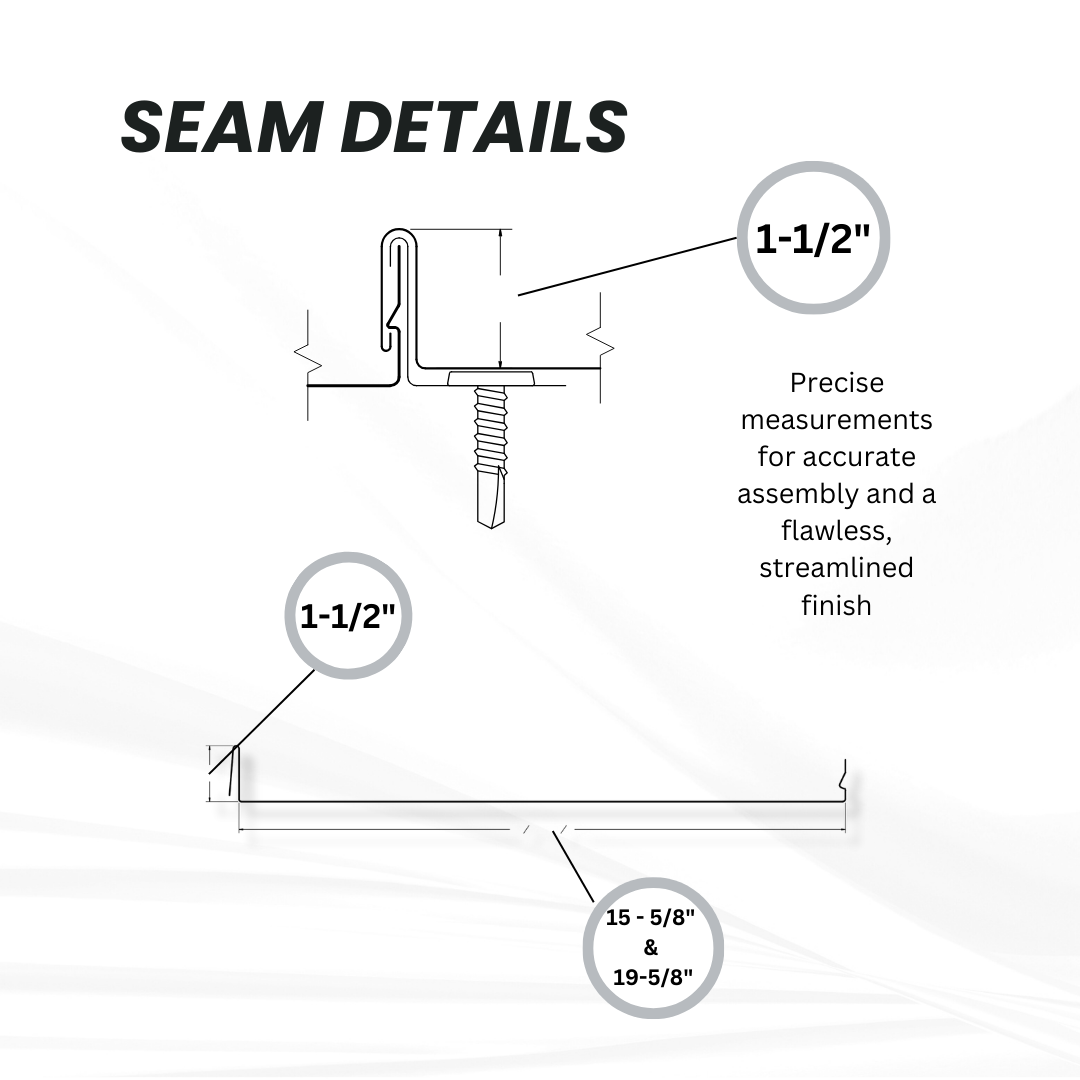

• 1-1/2" vertical rib

• Standard factory notched panels

• Concealed fasteners: fasteners cannot leak

• 3:12 minimum pitch recommended (For lower pitches, please inquire)

• Standard panel lengths 4' to 60' Minimum length 2' Notched Minimum length 1' Not Notched (For longer panels, please inquire)

• 2' Shortcut capability (Fee applicable)

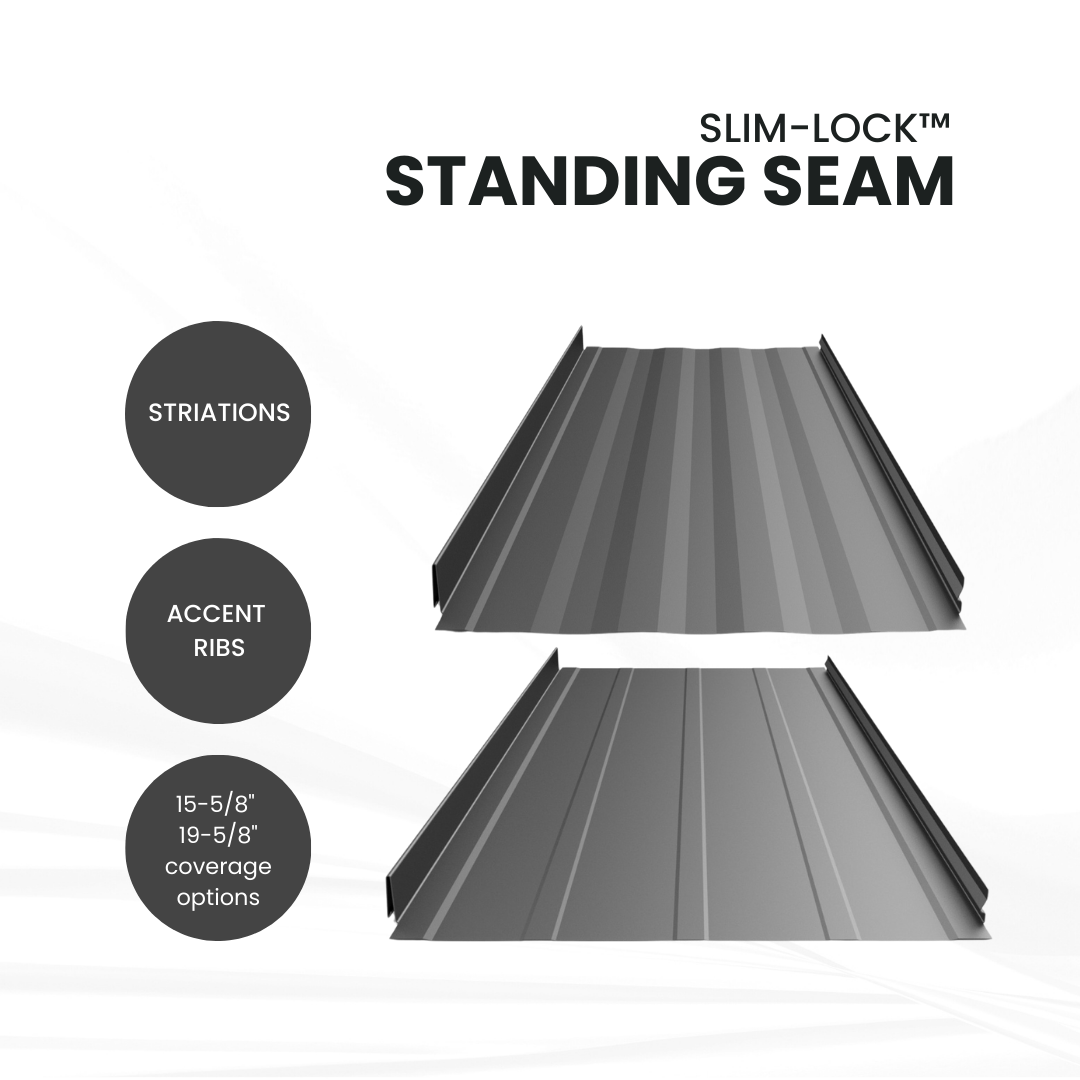

• Panel options: Striations, Accent Ribs, and Flat Pan

Downloadable PDFs:

Slim-Lock™ Installation Guide

Kynar 500 40 Year Residential Paint Warranty

The Slim-Lock™ Standing Seam, a testament to strength, elegance, and enduring quality in roofing solutions. Crafted with meticulous attention to detail, Slim-Lock™ ensures a seamless, weathertight roof that stands the test of time. Its innovative clip system allows for the installation of exceptionally long panels without compromising structural integrity.

KEY FEATURES

• Standard coverages: 15-5/8" & 19-5/8" (24ga. only) (For other widths, please inquire)

• Non Standard coverages/requires slitting: 12” & 16”

• 24 & 22 Tru-Gauge™ and .032" Aluminum

• 16 & 20 oz. Copper (Please inquire)

• Floating clip system: allows for expansion & contraction of panels in longer lengths

• 1-1/2" vertical rib

• Standard factory notched panels

• Concealed fasteners: fasteners cannot leak

• 3:12 minimum pitch recommended (For lower pitches, please inquire)

• Standard panel lengths 4' to 60' Minimum length 2' Notched Minimum length 1' Not Notched (For longer panels, please inquire)

• 2' Shortcut capability (Fee applicable)

• Panel options: Striations, Accent Ribs, and Flat Pan

Downloadable PDFs:

Slim-Lock™ Installation Guide

Kynar 500 40 Year Residential Paint Warranty



Installation and Advantages:

Slim-Lock™ not only enhances the aesthetic appeal of any structure but also minimizes maintenance needs. Engineered to withstand diverse weather conditions, from heavy rains to snow, it guarantees reliable protection year-round. The streamlined installation process reduces both time and costs, making it a practical choice for homeowners and contractors alike. With a wide array of color options and finishes, Slim-Lock™ complements any architectural style, ensuring both functionality and elegance for your home.

FINISHES

• 21 Standard Colors, 5 Metallic Colors and 4 Specialized Materials

• Kynar 500® Paint System - the ultimate in exterior durability and color retention

• “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria

• Superior quality, two coat, 70% resin finish, applied at a 1 mil. thickness

• 40 year residential paint warranty

• 20 and 30 year commercial paint warranty: Contact us for warranty specifications







MATERIAL SPECIFICATIONS

• 24 gauge Kynar 500® Painted Steel G-90 Galvanized or AZ-50

• 24 & 22 gauge bare Zincalume® Plus AZ-55 (No finish warranty – 25 yr. perforation warranty)

• 22 gauge Kynar 500® Painted Steel G-90 Galvanized or AZ-50

• .032" Kynar 500® Painted Aluminum

• 16 and 20 ounce Copper (Please inquire)

• Kynar 500® and substrate testing data available

• “Oil Canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection
