ShadowLine™

$0.00

ShadowLine™ will give your commercial or residential project a unique appearance. The panel reveal displays a shadowing effect that changes throughout the day, giving depth to your building. These panels are a perfect fit to be used on walls, soffits and fascia. With the 4 different panel styles available, your designs will come alive.

KEY FEATURES

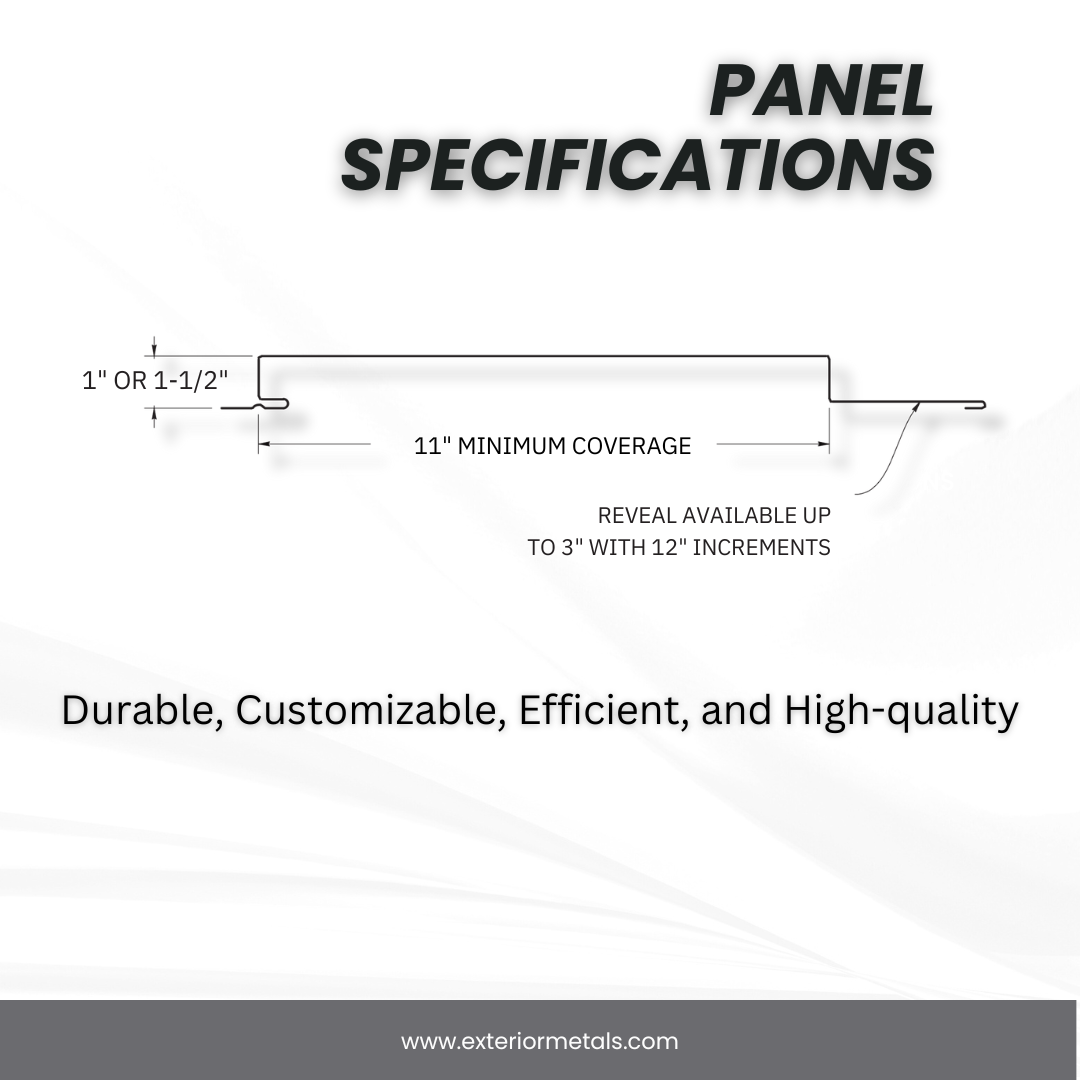

• 11" to 15" coverage

• 24 & 22 gauge Tru-Gauge™

• .032 & .040 Aluminum

• Custom Lengths 3' to 35' (Inquire on longer or shorter lengths)

• 2' Shortcut capability (Fee applicable)

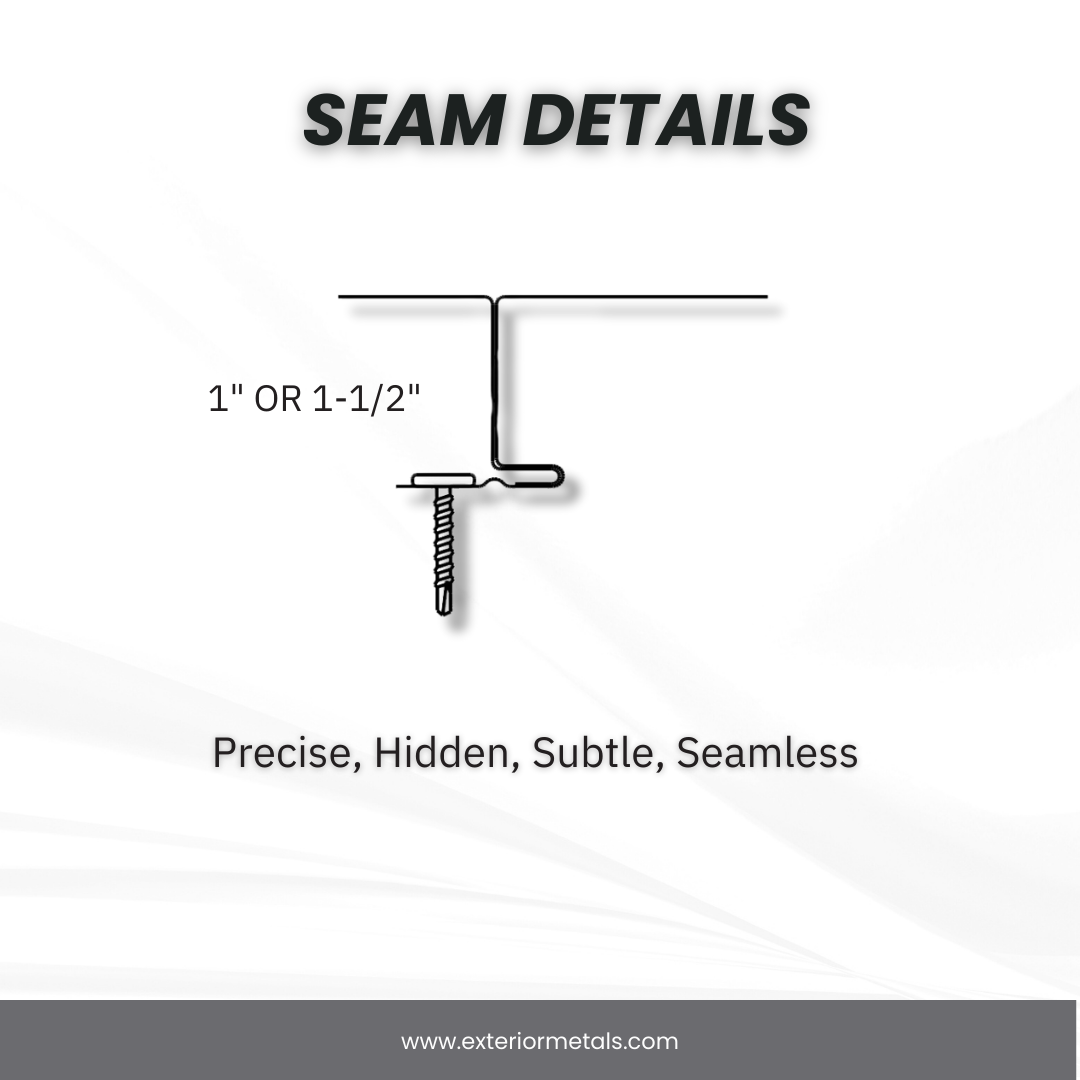

• Concealed Fasteners: fasteners cannot leak

• Versatile in wall and soffit applications

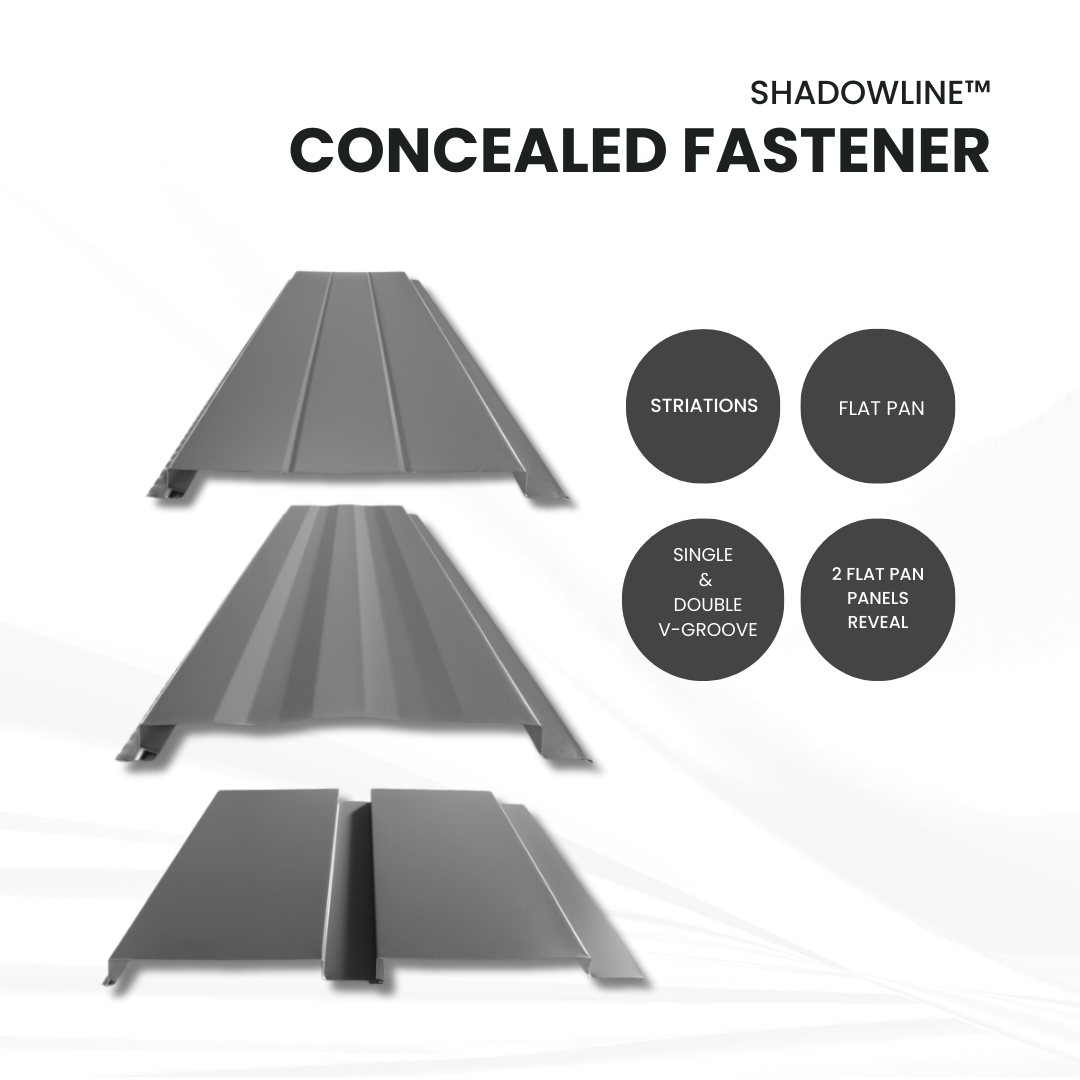

• Panel options: Striations, Single V-Groove, Double V-Groove, and Flat Pan

• ShadowLine™ can be perforated for soffit applications

• “Oil canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection

Downloadable PDFs:

ShadowLine™ Installation Guide

Kynar 500 - 40 Year Residential Paint Warranty

ShadowLine™ will give your commercial or residential project a unique appearance. The panel reveal displays a shadowing effect that changes throughout the day, giving depth to your building. These panels are a perfect fit to be used on walls, soffits and fascia. With the 4 different panel styles available, your designs will come alive.

KEY FEATURES

• 11" to 15" coverage

• 24 & 22 gauge Tru-Gauge™

• .032 & .040 Aluminum

• Custom Lengths 3' to 35' (Inquire on longer or shorter lengths)

• 2' Shortcut capability (Fee applicable)

• Concealed Fasteners: fasteners cannot leak

• Versatile in wall and soffit applications

• Panel options: Striations, Single V-Groove, Double V-Groove, and Flat Pan

• ShadowLine™ can be perforated for soffit applications

• “Oil canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection

Downloadable PDFs:

ShadowLine™ Installation Guide

Kynar 500 - 40 Year Residential Paint Warranty



Transform your space with ShadowLine™ and experience the perfect blend of form and function. Discover the endless design possibilities today and let your creativity shine.

MATERIAL SPECIFICATIONS

• 24 Tru-Gauge™ Kynar 500® Painted Steel

• 22 Tru-Gauge™ Kynar 500® Painted Steel

• ✦ .032” Kynar 500® Painted Aluminum

• 24 Tru-Gauge™ G-90 Galvanized or AZ-50

• 24 and 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 (No finish warranty – 25 yr. perforation warranty)

• G-90 Galvanized or AZ-50

• 24 Tru-Gauge™ Bonderized

• 22 gauge Rusteel Plus™ (A606)

• 16 OZ & 20 OZ Real Copper

• Kynar 500® and substrate testing data available
