MS-200™

$0.00

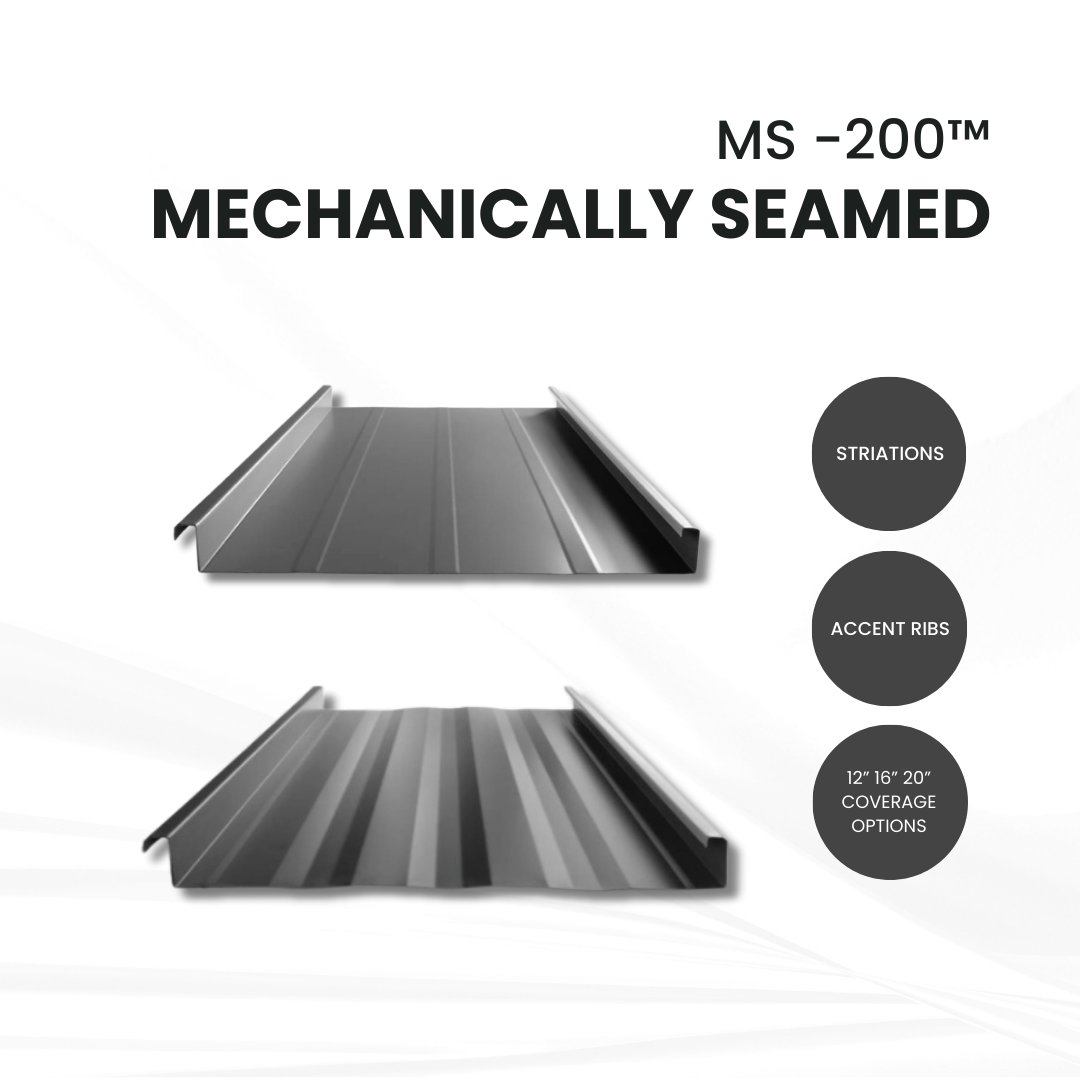

MS-200™ panel is a fully crimped mechanically seamed panel tailored for low-slope roofs across various environments. Engineered with factory-injected butyl sealant in its seams, the MS-200™ ensures a watertight seal, delivering enduring durability that lasts a lifetime. This versatile panel is robust and ideal for long length roof installations.

KEY FEATURES

• 12”, 14”, 16” & 18” coverage options

• 24 and 22 Tru-Gauge™ and .032” and .040 Aluminum

• Floating clip system: allows for expansion and contraction of panels in longer lengths

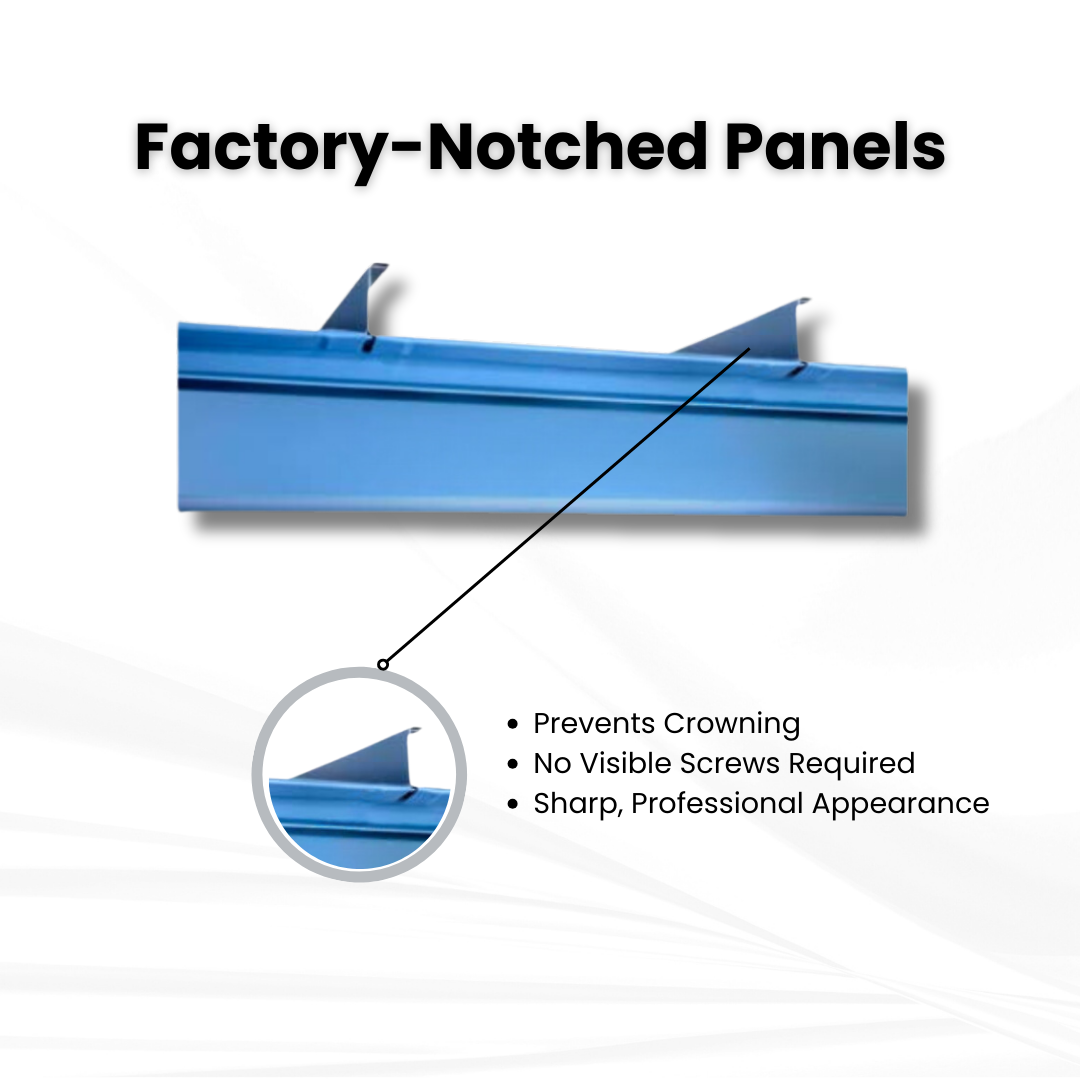

• 2” vertical rib, factory notching available

• 1/2:12 minimum pitch recommended (For lower pitches, please inquire)

• Standard panel lengths 1’ to 60’ (For longer length panels, please inquire)

• On-site roll forming available for longer panels

• Factory injected Butyl sealant available

• Clip Relief is not standard, available upon request

• Concealed fastener: fasteners cannot leak

• OverEZee retro-fit system available

• Panel options: Striations, Accent Rib, Flat Pan

Downloadable PDFs:

MS-200™ Installation Guide

Kynar 500 40 Year Residential Paint Warranty

Add To Cart

MS-200™

$0.00

MS-200™ panel is a fully crimped mechanically seamed panel tailored for low-slope roofs across various environments. Engineered with factory-injected butyl sealant in its seams, the MS-200™ ensures a watertight seal, delivering enduring durability that lasts a lifetime. This versatile panel is robust and ideal for long length roof installations.

KEY FEATURES

• 12”, 14”, 16” & 18” coverage options

• 24 and 22 Tru-Gauge™ and .032” and .040 Aluminum

• Floating clip system: allows for expansion and contraction of panels in longer lengths

• 2” vertical rib, factory notching available

• 1/2:12 minimum pitch recommended (For lower pitches, please inquire)

• Standard panel lengths 1’ to 60’ (For longer length panels, please inquire)

• On-site roll forming available for longer panels

• Factory injected Butyl sealant available

• Clip Relief is not standard, available upon request

• Concealed fastener: fasteners cannot leak

• OverEZee retro-fit system available

• Panel options: Striations, Accent Rib, Flat Pan

Downloadable PDFs:

MS-200™ Installation Guide

Kynar 500 40 Year Residential Paint Warranty

Add To Cart


Installation and Benefits:

The MS-200™ panel offers a reliable roofing solution for residential, commercial, and industrial applications alike. Its innovative design combines functionality with aesthetic appeal, ensuring long-term protection and beauty for your property.

MATERIAL SPECIFICATIONS

• 24 Tru-Gauge™ Kynar 500® Painted Steel

• 22 Tru-Gauge™ Kynar 500® Painted Steel

• .032” Kynar 500® Painted Aluminum

• 24 Tru-Gauge™ G-90 Galvanized or AZ-50

• 24 and 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 (No finish warranty – 25 yr. perforation warranty)

• G-90 Galvanized or AZ-50

• .040” Kynar 500® Painted Aluminum (please inquire)

• 24 Tru-Gauge™ Bonderized

• 22 gauge Rusteel Plus™ (A606)

• 16 OZ & 20 OZ Real Copper

FINISHES

• 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors

• Kynar 500® Paint System - the ultimate in exterior durability and color retention

• “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria

• Superior quality, two coat, 70% resin finish, applied at a 1 mil. thickness

• 40 year residential paint warranty

• 20 and 30 year commercial paint warranty: Contact us for warranty specifications

• “Oil Canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection
