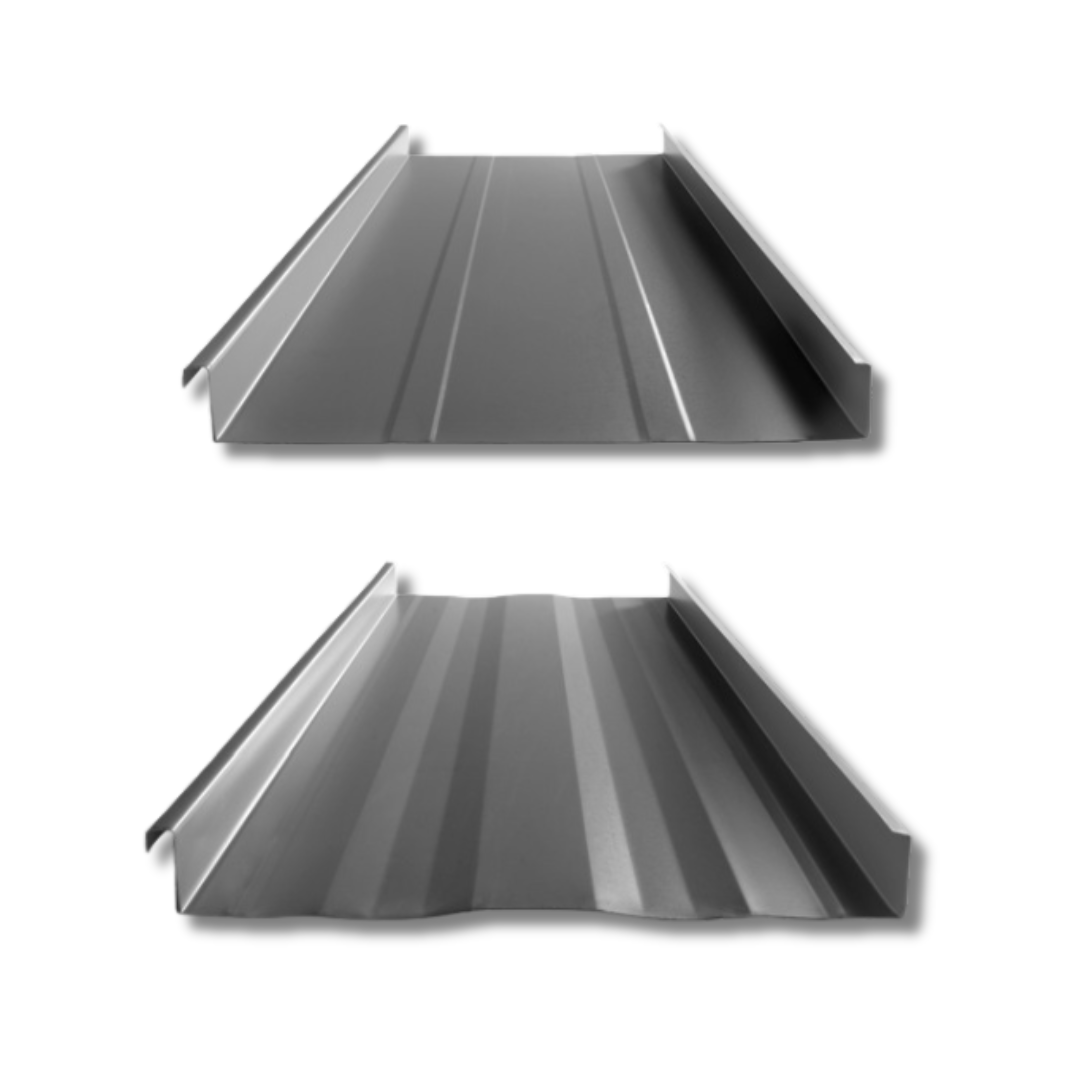

MS-150™
The MS-150™, a mechanically seamed roofing system designed to excel in high wind and snow-prone areas. Engineered with a butyl injected seam to prevent water ingress, the MS-150™ offers unparalleled durability and worry-free performance for a lifetime.
KEY FEATURES
• 12", 16" & 20" coverage options (other widths inquire)
• 24 & 22 Tru-Gauge™ and .032" Aluminum
• 16 & 20 oz. Copper (Please inquire)
• Floating clip system: allows for expansion/contraction of panels in longer lengths

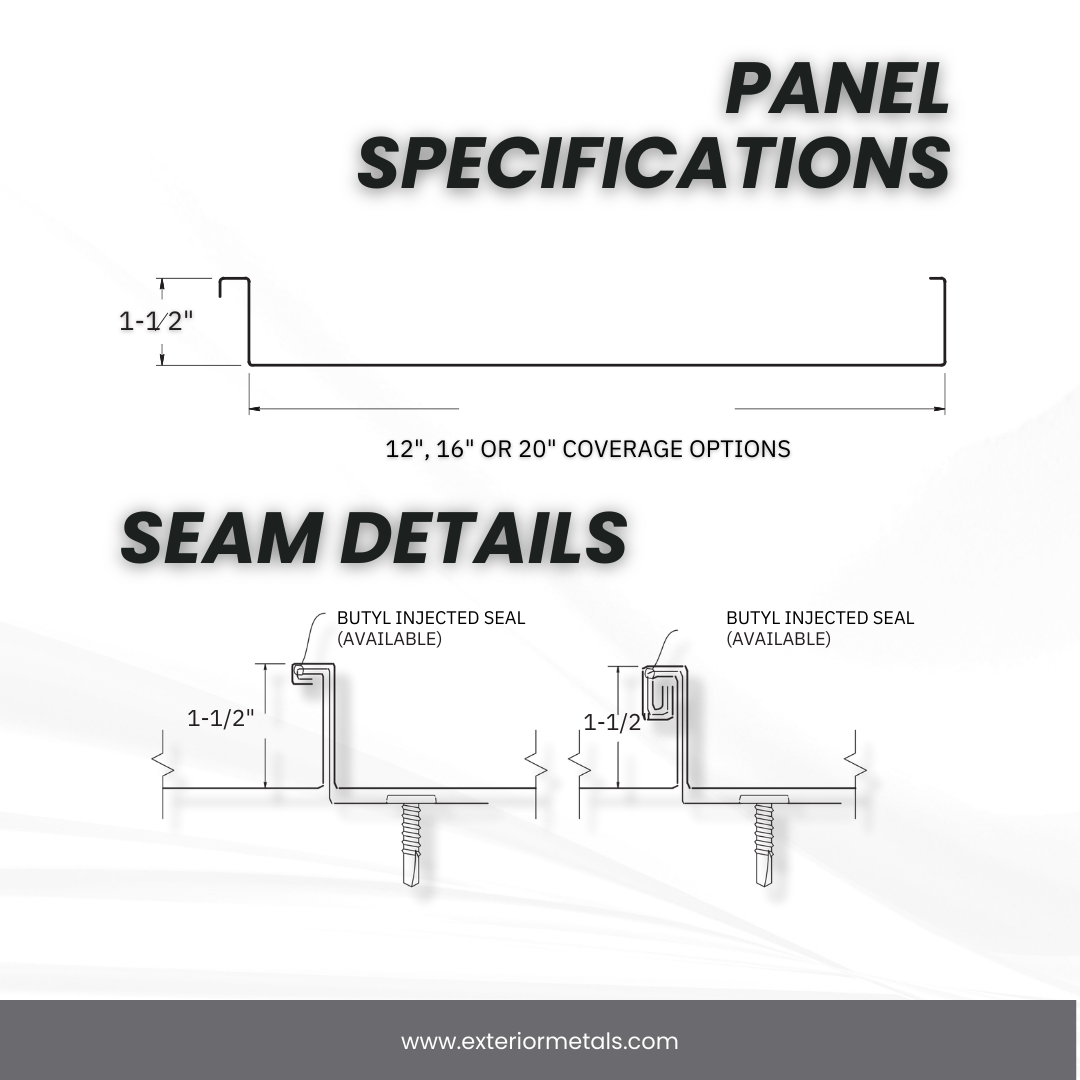

• 1-1/2" vertical rib
• Factory injected Butyl sealant
• Clip Relief is not standard, available upon request
• Concealed fasteners: fasteners cannot leak
• 1:12 minimum pitch recommended (For lower pitches, please inquire)

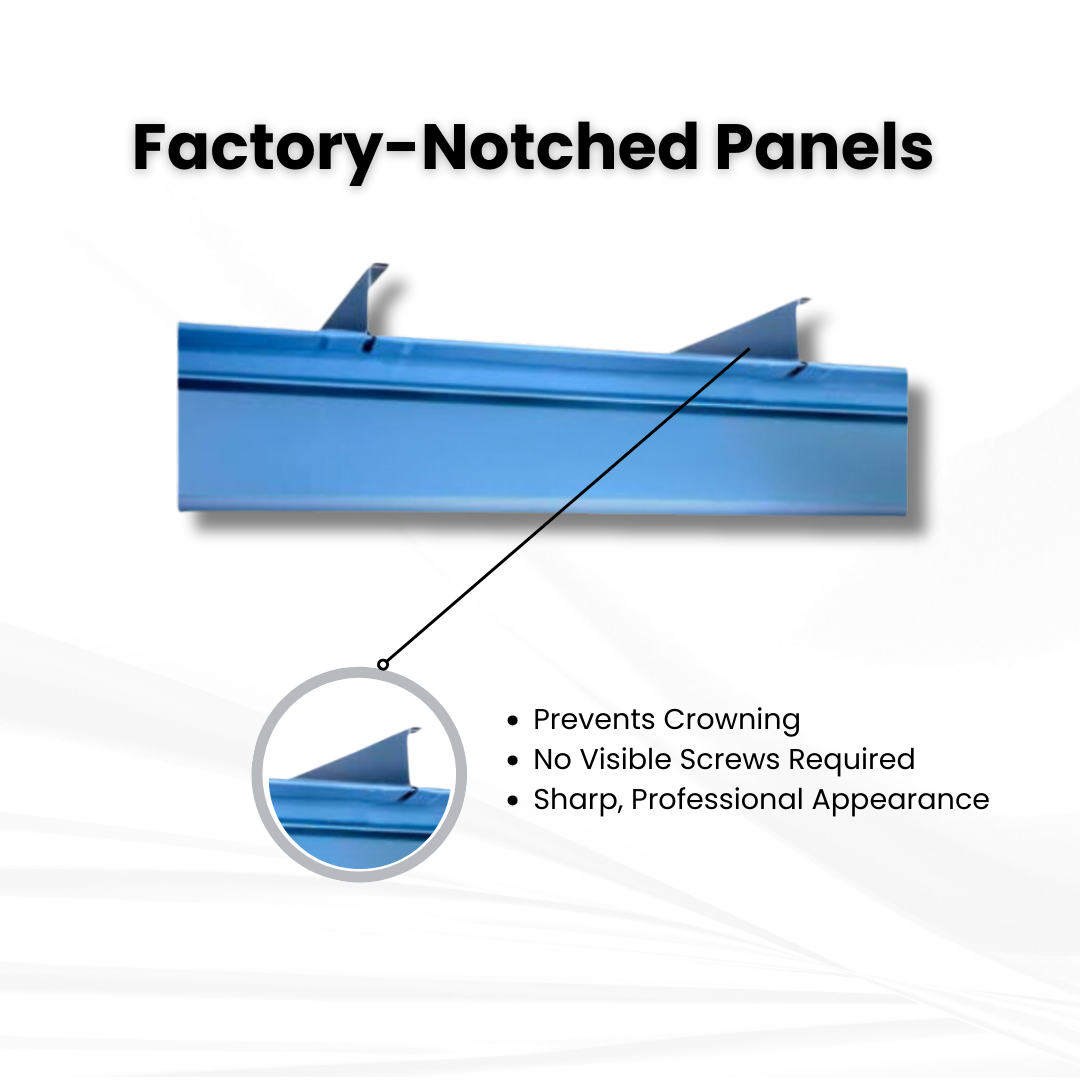

• Standard panel lengths 3' to 60' - notched
Standard panel lengths 1' to 60' - not notched (For longer panels, please inquire)
• Onsite roll forming available
• Panel options: Striations, Accent Ribs, and Flat Pan
• OverEZee retro-fit systems available
Downloadable PDFs:
Installation and Benefits:
The MS-150™ panel's straightforward installation reduces labor costs and accelerates project timelines, making it a cost-effective choice for homeowners and contractors alike. Its robust design ensures exceptional performance in coastal storms and heavy snow, delivering peace of mind and enduring value.
FINISHES
• 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
• Kynar 500® Paint System - the ultimate in exterior durability and color retention
• “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
• Superior quality, two coat, 70% resin finish, applied at a 1 mil. thickness
• 40 year residential paint warranty
• 20 and 30 year commercial paint warranty
• “Oil Canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection
MATERIAL SPECIFICATIONS
• 24 Tru-Gauge™ Kynar 500® Painted Steel
• 22 Tru-Gauge™ Kynar 500® Painted Steel
• .032” Kynar 500® Painted Aluminum
• 24 Tru-Gauge™ G-90 Galvanized or AZ-50
• 24 and 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 (No finish warranty – 25 yr. perforation warranty)
• G-90 Galvanized or AZ-50
• .040” Kynar 500® Painted Aluminum (please inquire)
• 24 Tru-Gauge™ Bonderized
• 22 gauge Rusteel Plus™ (A606)
• Custom 20 & 18 Tru-Gauge™ and .050” and .063” Aluminum (please inquire)
• 16 OZ & 20 OZ Real Copper
• Kynar 500® and substrate testing data available
