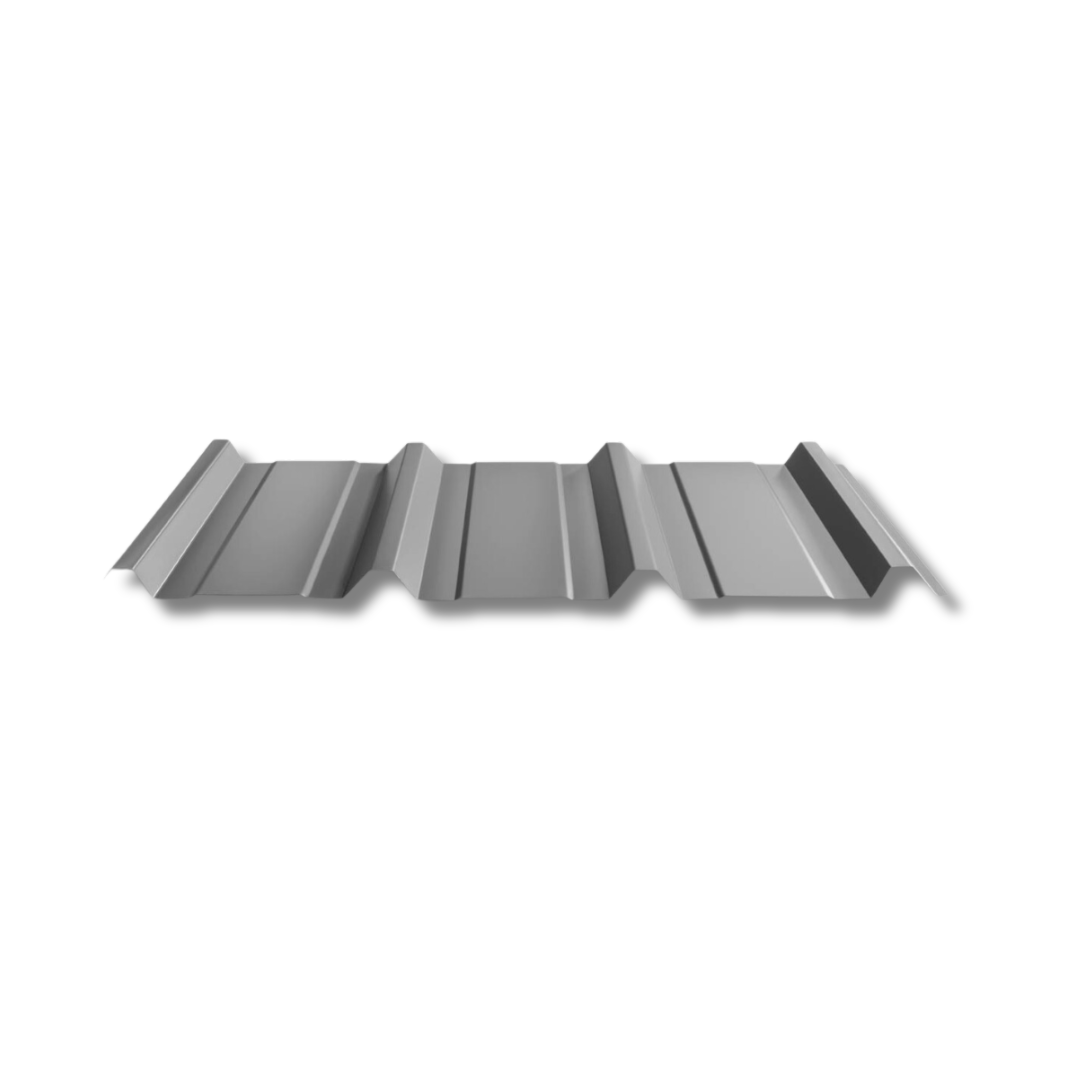

Marion "R" Panel
Metal wall panels are a durable and modern solution for residential and commercial buildings. Marion "R" Panel™ Exposed Fastener panels offer customization, easy installation, and a sleek aesthetic for siding, roofing, or interior accents.
KEY FEATURES
• 26, 24 and 22 Tru-Gauge™ and .032” Aluminum
• 1:12 minimum pitch recommended when installed with butyl sealant
• Custom lengths 1’ to 45’ (For longer length panels, please inquire)
• Long length flashings available up to 20’ 11”
• Standard trim, custom trim and accessory packages available
• Color matched neoprene washered screws
• Roof and Vertical or Horizontal Wall application
• Perforated options available (please inquire)
• Fiberglass & Polycarbonate panels available to match profile
• OverEZee™ retro-fit systems available
Downloadable PDFs:
Marion "R" Panel Installation Guide
Incorporating metal wall panels into your design not only elevates the aesthetic but also improves the energy efficiency of the building. Their reflective properties can help in regulating indoor temperatures, potentially reducing cooling costs during hot months. With all these benefits, it's clear that Marion "R" Panel™ Exposed Fastener panels are a smart investment for any building project, combining style, durability, and sustainability in one innovative package.
MATERIAL SPECIFICATIONS
• 24 Tru-Gauge™ Kynar 500® Painted Steel .0236” (Thickness prior to painting)
• 22 Tru-Gauge™ Kynar 500® Painted Steel .029” (Thickness prior to painting)
• ✦ .032” Kynar 500® Painted Aluminum
• 24 Tru-Gauge™ G-90 Galvanized or AZ-50
• 24 and 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 (No finish warranty – 25 yr. perforation warranty)
• G-90 Galvanized or AZ-50
• .032" & .040” Kynar 500® Painted Aluminum
• 24 Tru-Gauge™ Bonderized
• 22 gauge Rusteel Plus™ (A606) (No finish warranty – no perforation warranty)
• Kynar 500® and substrate testing data available
