Lifetime Soffit™

$0.00

Lifetime Soffit™ will give your commercial or residential projects a clean monolithic appearance. These panels are a perfect fit to be used on walls, soffits and fascia. With the different panel styles available, your designs will come alive.

KEY FEATURES

• 12" coverage

• 24 & 22 gauge Tru-gauge™

• Custom Lengths 3' to 35' (Inquire for longer or shorter lengths)

• 2' Shortcut capability (Fee applicable)

• Concealed Fasteners: fasteners cannot leak

• 6.16 sq. inch free air flow per lineal foot of perforated panel

• ASTM E1592 - Structural uniform static air pressure

• ASTM E283, ASTM E330, ASTM E331

• Versatile in wall and soffit applications

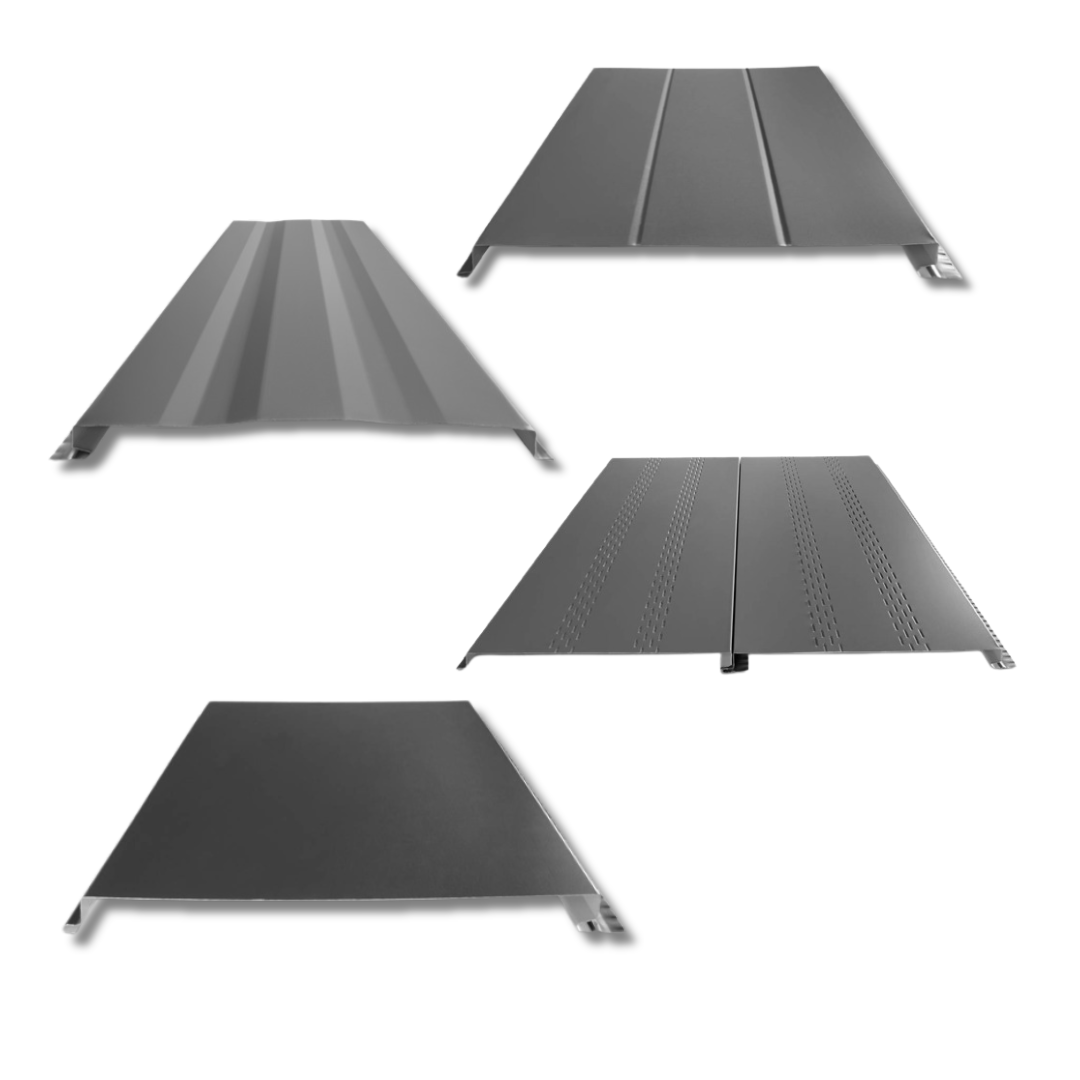

• Panel options: Perforated, Striations, Single V-Groove, Double V-Groove, and Flat Pan

• “Oil canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection

Downloadable PDFs:

Lifetime Soffit™ Installation Guide

Kynar 500 - 40 Year Residential Paint Warranty

Lifetime Soffit™ will give your commercial or residential projects a clean monolithic appearance. These panels are a perfect fit to be used on walls, soffits and fascia. With the different panel styles available, your designs will come alive.

KEY FEATURES

• 12" coverage

• 24 & 22 gauge Tru-gauge™

• Custom Lengths 3' to 35' (Inquire for longer or shorter lengths)

• 2' Shortcut capability (Fee applicable)

• Concealed Fasteners: fasteners cannot leak

• 6.16 sq. inch free air flow per lineal foot of perforated panel

• ASTM E1592 - Structural uniform static air pressure

• ASTM E283, ASTM E330, ASTM E331

• Versatile in wall and soffit applications

• Panel options: Perforated, Striations, Single V-Groove, Double V-Groove, and Flat Pan

• “Oil canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection

Downloadable PDFs:

Lifetime Soffit™ Installation Guide

Kynar 500 - 40 Year Residential Paint Warranty



Whether you're aiming for a modern, sleek look or a more traditional aesthetic, Lifetime Soffit™ offers versatility and durability. Each panel is crafted with precision to ensure not only aesthetic appeal but also long-lasting performance, resisting the elements and maintaining its beauty over time. Easy to install and maintain, these panels are an excellent investment for any project, providing both functional and visual benefits. Choose Lifetime Soffit™ and watch your vision transform into reality with elegance and ease.

MATERIAL SPECIFICATIONS

• 24 & 22 gauge Kynar 500® Painted Steel .0236" (Thickness prior to painting) G-90 Galvanized or AZ-50

• 24 & 22 gauge bare Zincalume® Plus AZ-55 (No finish warranty – 25 yr. perforation warranty)

• 22 gauge Kynar 500® Painted Steel .029" (Thickness prior to painting) G-90 Galvanized or AZ-50

• 22 gauge Rusteel Plus™ (A606)

• Kynar 500® and substrate testing data available
