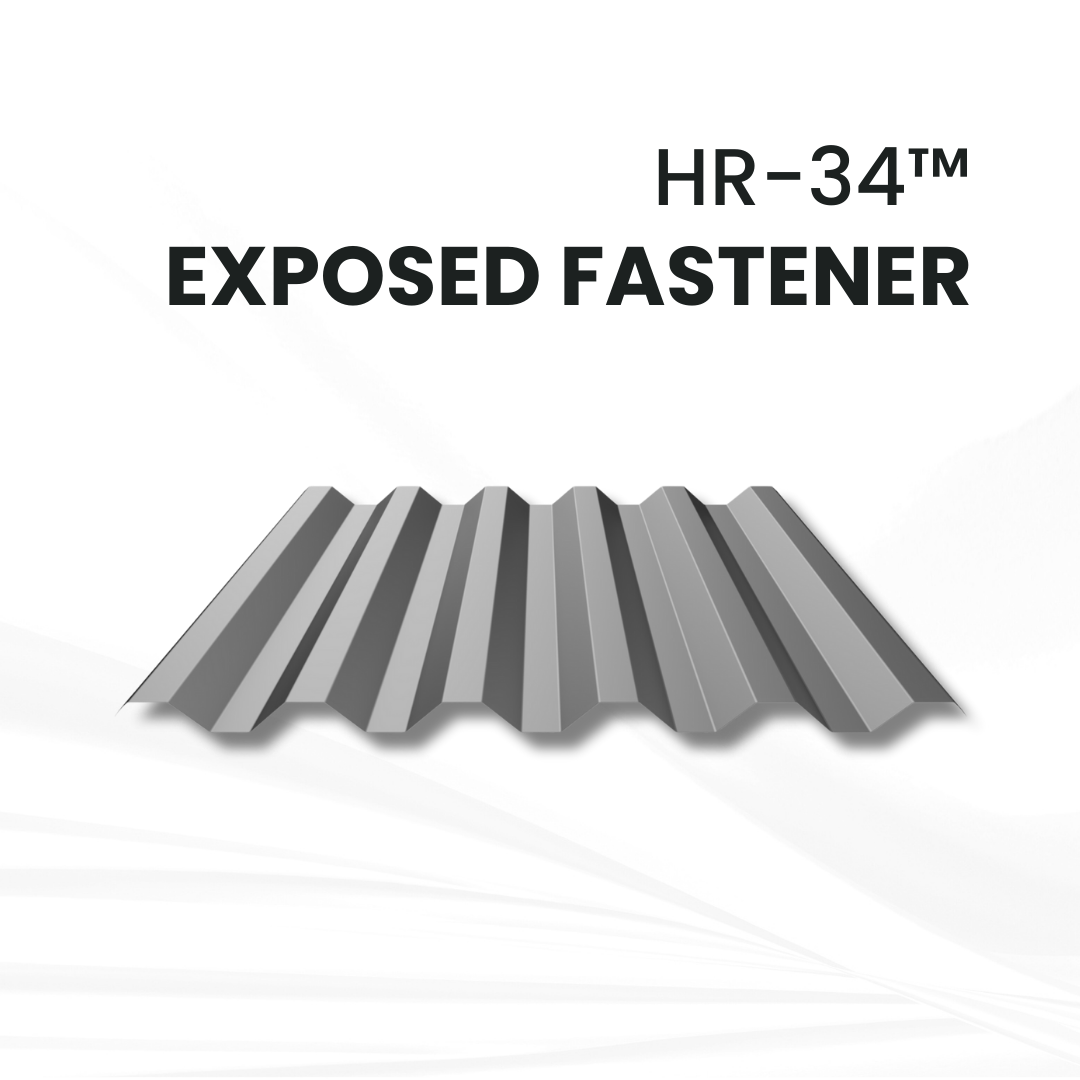

HR-34

$0.00

The HR-34™ Exposed Fastener roofing system, designed for versatility and durability with a ribbed profile that enhances strength and weather resistance. This system features an exposed fastener design for straightforward installation and cost-effectiveness, making it suitable for various architectural styles in both residential and commercial applications.

KEY FEATURES

• 26, 24 and 22 Tru-Gauge™ and .032” Aluminum

• Custom 20 & 18 Tru-Gauge™ and .040” Aluminum (please inquire)

• 1:12 minimum pitch recommended when installed with please inquire)

• Long length flashings available up to 20’ 11”

• Standard trim, custom trim and accessory packages available

• Color matched neoprene washered screws

• Roof and Vertical or Horizontal Wall application

• Structural panel that will span up to 6’

• OverEZee™ Retro-fit systems available

Downloadable PDFs:

HR-34 Installation Guide

ArmorTech™ 40 Year Residential Paint Warranty

Kynar 500™ 40 Year Residential Paint Warranty

The HR-34™ Exposed Fastener roofing system, designed for versatility and durability with a ribbed profile that enhances strength and weather resistance. This system features an exposed fastener design for straightforward installation and cost-effectiveness, making it suitable for various architectural styles in both residential and commercial applications.

KEY FEATURES

• 26, 24 and 22 Tru-Gauge™ and .032” Aluminum

• Custom 20 & 18 Tru-Gauge™ and .040” Aluminum (please inquire)

• 1:12 minimum pitch recommended when installed with please inquire)

• Long length flashings available up to 20’ 11”

• Standard trim, custom trim and accessory packages available

• Color matched neoprene washered screws

• Roof and Vertical or Horizontal Wall application

• Structural panel that will span up to 6’

• OverEZee™ Retro-fit systems available

Downloadable PDFs:

HR-34 Installation Guide

ArmorTech™ 40 Year Residential Paint Warranty

Kynar 500™ 40 Year Residential Paint Warranty



Installation and Warranties:

The HR-34™ Installation Guide provides detailed instructions for installation, ensuring ease and efficiency. Backed by the ArmorTech™ and Kynar 500™ 40 Year Residential Paint Warranties, this roofing system assures long-lasting performance and aesthetic appeal.

MATERIAL SPECIFICATIONS

• 24 Tru-Gauge™ Kynar 500® Painted Steel .0236” (Thickness prior to painting)

• 22 Tru-Gauge™ Kynar 500® Painted Steel .029” (Thickness prior to painting)

• ✦ .032” Kynar 500® Painted Aluminum

• 24 Tru-Gauge™ G-90 Galvanized or AZ-50

• 24 and 22 Tru-Gauge™ bare Zincalume® Plus

AZ-55 (No finish warranty – 25 yr. perforation warranty)

• G-90 Galvanized or AZ-50

• .032" & .040” Kynar 500® Painted Aluminum

• 24 Tru-Gauge™ Bonderized

• 22 gauge Rusteel Plus™ (A606) (No finish warranty – no perforation warranty)

• Kynar 500® and substrate testing data available
