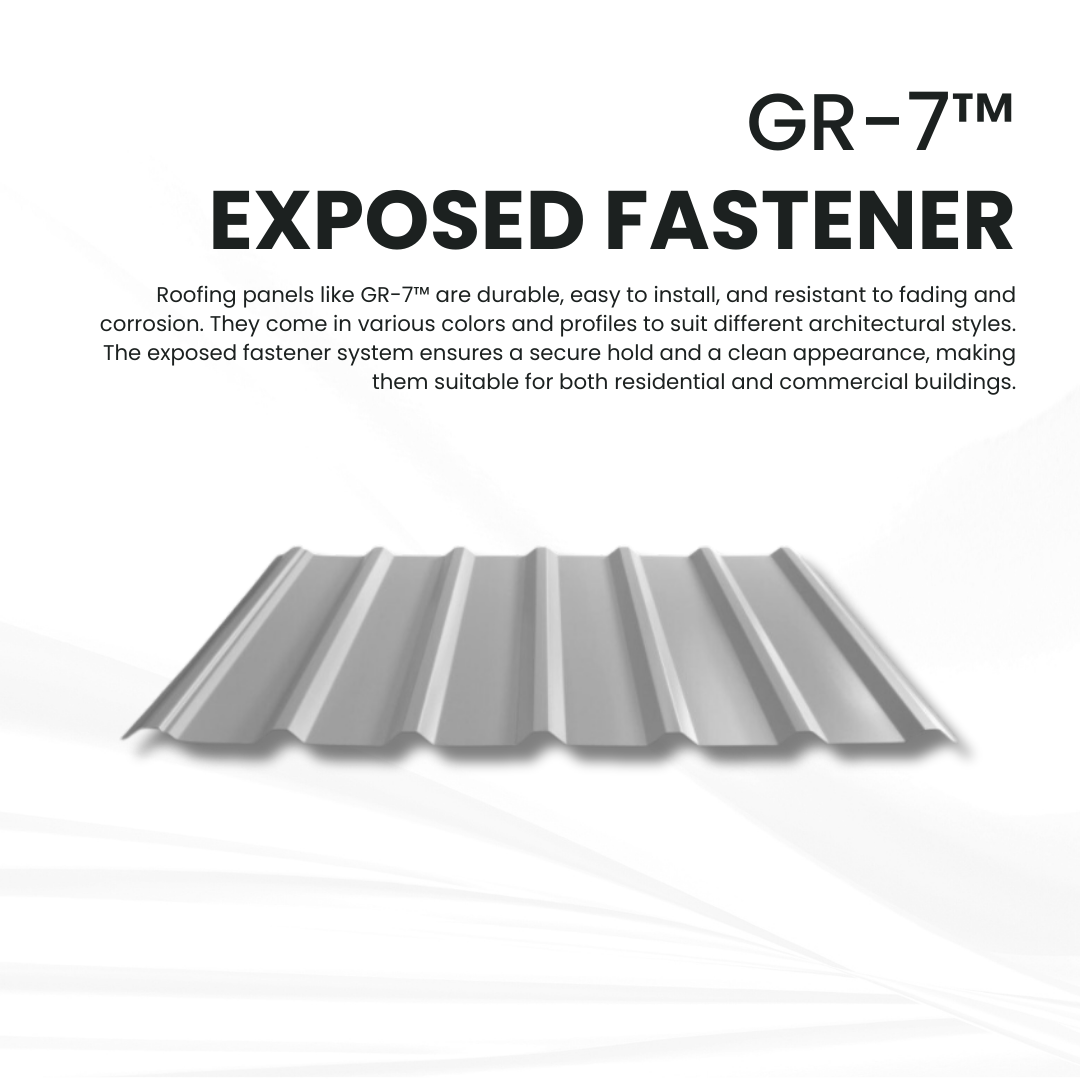

GR-7™

$0.00

GR-7™ roofing panels are a versatile and economical choice suitable for both residential and commercial applications. These panels are designed with durability and ease of installation in mind, featuring a high-quality finish that resists fading, chipping, and corrosion, ensuring long-term performance even in challenging weather conditions. Available in various colors and profiles, the GR-7™ panels seamlessly integrate with any architectural style, enhancing the aesthetic appeal of buildings.

KEY FEATURES

• 29, 26, 24 and 22 Tru-Gauge™ and Rusteel Plus and .032” Aluminum

• 1:12 minimum pitch recommended when installed with butyl sealant

• Custom lengths 1’ to 45’ (For longer length panels, please inquire)

• Long length flashings available up to 20’ 11” • Standard trim, custom trim and accessory packages available

• Color matched neoprene washered screws

• Roof and Vertical or Horizontal Wall application

• Fiberglass panels available to match profile

• OverEZee™ retro-fit systems available

Downloadable PDFs:

GR-7™ Installation Guide

ArmorTech™ 40 Year Residential Paint Warranty

Kynar 500™ 40 Year Residential Paint Warranty

GR-7™ roofing panels are a versatile and economical choice suitable for both residential and commercial applications. These panels are designed with durability and ease of installation in mind, featuring a high-quality finish that resists fading, chipping, and corrosion, ensuring long-term performance even in challenging weather conditions. Available in various colors and profiles, the GR-7™ panels seamlessly integrate with any architectural style, enhancing the aesthetic appeal of buildings.

KEY FEATURES

• 29, 26, 24 and 22 Tru-Gauge™ and Rusteel Plus and .032” Aluminum

• 1:12 minimum pitch recommended when installed with butyl sealant

• Custom lengths 1’ to 45’ (For longer length panels, please inquire)

• Long length flashings available up to 20’ 11” • Standard trim, custom trim and accessory packages available

• Color matched neoprene washered screws

• Roof and Vertical or Horizontal Wall application

• Fiberglass panels available to match profile

• OverEZee™ retro-fit systems available

Downloadable PDFs:

GR-7™ Installation Guide

ArmorTech™ 40 Year Residential Paint Warranty

Kynar 500™ 40 Year Residential Paint Warranty



Benefits:

The GR-7™ panels not only offer excellent thermal efficiency, potentially reducing energy costs by regulating indoor temperatures, but also provide versatility beyond roofing. They can be used for siding, fencing, and interior design elements, contributing to a modern and cohesive aesthetic across various applications. With customizable accessories and trim options, these panels can be tailored to meet specific project needs and design preferences, whether for renovation or new construction.

MATERIAL SPECIFICATIONS

• 24 Tru-Gauge™ Kynar 500® Painted Steel .0236” (Thickness prior to painting)

• 22 Tru-Gauge™ Kynar 500® Painted Steel .029” (Thickness prior to painting)

• .032” Kynar 500® Painted Aluminum

• 24 Tru-Gauge™ G-90 Galvanized or AZ-50

• 24 and 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 (No finish warranty – 25 yr. perforation warranty)

• G-90 Galvanized or AZ-50

• .032" & .040” Kynar 500® Painted Aluminum

• 24 Tru-Gauge™ Bonderized

• 22 gauge Rusteel Plus™ (A606) (No finish warranty – no perforation warranty)

• Kynar 500® and substrate testing data available
