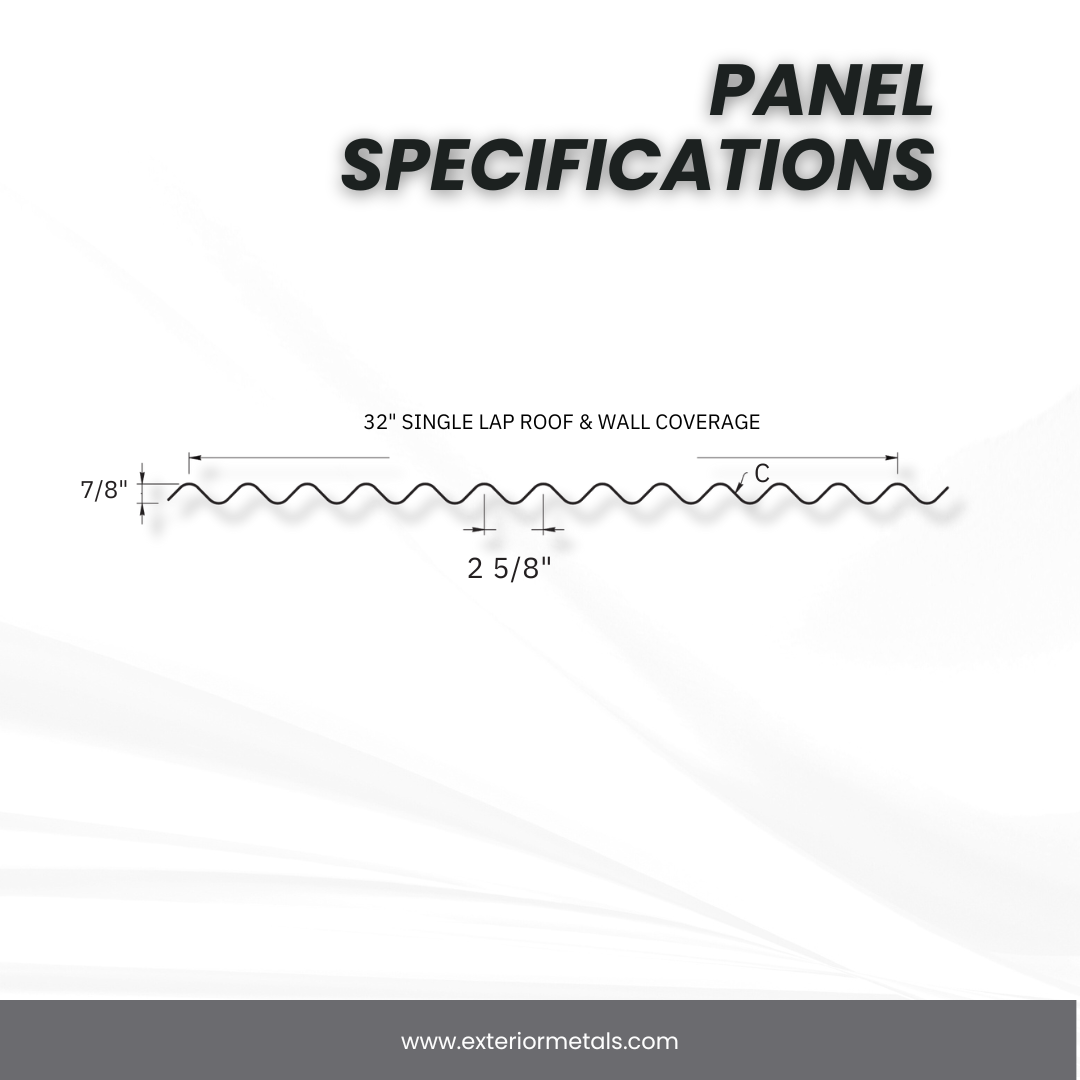

Classic 7/8" Corrugated
Classic 7/8” Corrugated™ Exposed Fastener panels are a timeless choice for roofing and siding applications, offering both durability and aesthetic appeal. Designed to withstand harsh weather conditions, these panels feature a unique profile that provides structural strength and a distinctive look. Ideal for residential, commercial, and agricultural buildings, the Classic 7/8” Corrugated™ panels are available in a variety of colors and finishes, ensuring a perfect match for any architectural style. Easy to install and maintain, they provide a cost-effective solution while enhancing the overall appearance and value of your property.
KEY FEATURES
• 26, 24 and 22 Tru-Gauge™ and .032” and .040” Aluminum
• 1:12 minimum pitch recommended when installed with butyl sealant
• Custom lengths 1’ to 45’ (For longer length panels, please inquire)
• Long length flashings available up to 20’ 11”• Standard trim, custom trim and accessory packages available
• Color matched neoprene washered screws
• Roof and Vertical or Horizontal Wall application
• Fiberglass panels available to match profile
• OverEZee™ Retro-fit systems available
Downloadable PDFs:
Classic 7/8 Corrugated™ Installation Guide
Benefits:
The Classic 7/8” Corrugated™ panels combine durability with aesthetic appeal, making them suitable for residential, commercial, and agricultural buildings. Their ability to withstand harsh weather conditions, resist rust and corrosion, and require minimal maintenance ensures long-term cost-effectiveness. These panels not only protect your property but also enhance its visual appeal with a timeless design that complements any architectural style. Whether you’re constructing a new building or renovating an existing structure, these panels provide a versatile solution that meets both aesthetic and functional requirements.
MATERIAL SPECIFICATIONS
• 24 Tru-Gauge™ Kynar 500® Painted Steel .0236” (Thickness prior to painting)
• 22 Tru-Gauge™ Kynar 500® Painted Steel .029” (Thickness prior to painting)
• ✦ .032” Kynar 500® Painted Aluminum
• 24 Tru-Gauge™ G-90 Galvanized or AZ-50
• 24 and 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 (No finish warranty – 25 yr. perforation warranty)
• G-90 Galvanized or AZ-50
• .032" & .040” Kynar 500® Painted Aluminum
• 24 Tru-Gauge™ Bonderized
• 22 gauge Rusteel Plus™ (A606) (No finish warranty – no perforation warranty)
• Kynar 500® and substrate testing data available
